Wrought Iron Fence Installation: Post Setting and Panel Mounting
Master wrought iron fence installation with our step-by-step guide covering post hole depth, concrete mixing, and panel mounting.
Material Reality: True Wrought Iron vs. Modern Ornamental Steel
Before breaking ground, it is critical to clarify a common industry misnomer. True wrought iron—puddled iron with a high slag content—is virtually extinct in new manufacturing due to its labor-intensive production. What is sold as 'wrought iron fencing' today is almost exclusively CNC-forged mild steel or extruded aluminum featuring a baked-on powder-coated finish. While modern mild steel offers superior tensile strength and uniform wall thickness (typically 1/8-inch to 3/16-inch for 2.5x2.5-inch or 3x3-inch posts), it is highly susceptible to oxidation if the powder coat is compromised during installation. The procedures below are engineered for modern heavy-gauge ornamental steel, focusing on preserving the factory coating while ensuring structural permanence.
Phase 1: Site Layout and Utility Clearance
Ornamental steel panels are rigid and unforgiving. Unlike chain-link or wood, you cannot easily bend or stretch a 6-foot welded steel panel to accommodate a miscalculated post spacing. Precision during the layout phase is non-negotiable.
- Establish the Run Line: Drive 2x2 wooden stakes 12 inches outside your actual fence line at both ends. Attach a mason line (minimum 20 lb test) tightly between the stakes. This line represents the exact center of your posts.
- Calculate Exact Spacing:
- Mark Post Centers: Use a plumb bob to transfer the string line to the ground, marking the exact center of each post hole with landscaping paint.
Phase 2: Excavation and Base Preparation
The longevity of a heavy steel fence relies entirely on the subsurface footing. Steel posts act as levers; wind load on a 6-foot solid privacy panel or heavy ornamental picket panel exerts massive rotational force at the ground line.
Digging to the Frost Line
Post holes must extend below the local frost line to prevent frost heave from pushing the posts upward. In northern climates, this typically means a minimum depth of 36 to 42 inches. The hole diameter should be three times the width of the post (e.g., a 9-inch diameter hole for a 3-inch post).
The Gravel Base Protocol
Never set a steel post directly on bare dirt. Soil retains moisture, which accelerates bottom-up corrosion even on powder-coated steel. Add 4 to 6 inches of 3/4-inch crushed angular gravel to the bottom of the hole and tamp it firmly. This creates a capillary break, allowing water to drain away from the post base and preventing hydrostatic uplift during freeze-thaw cycles.

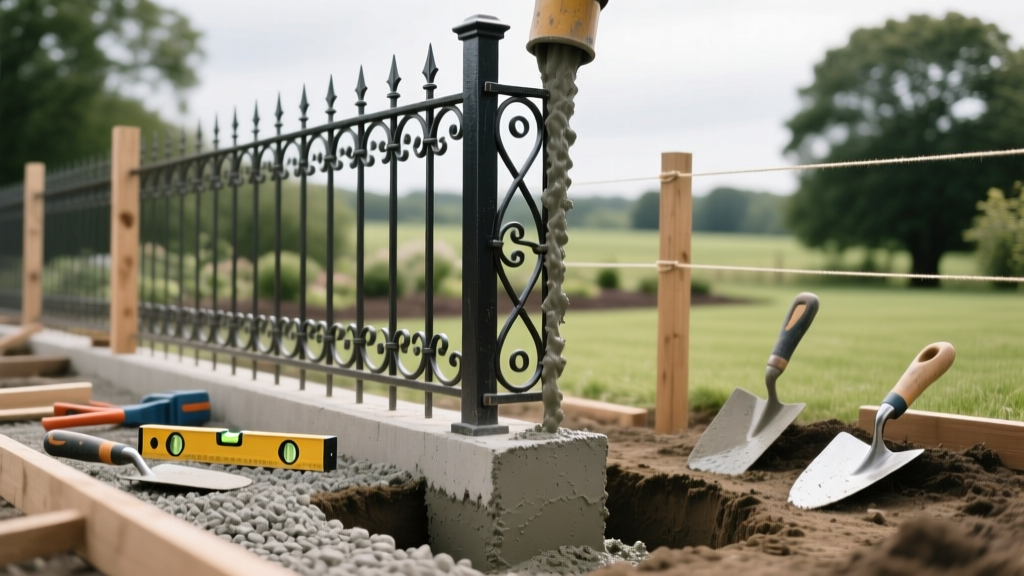

Phase 3: Setting the Posts in Concrete
According to guidelines from the National Ornamental & Miscellaneous Metals Association (NOMMA), proper concrete encasement is the primary defense against structural failure in ornamental metal fences.
- Concrete Selection: Use a standard 4,000 PSI concrete mix. Avoid 'rapid-setting' fence post mixes for heavy steel posts; they cure too quickly, generate excessive heat, and are prone to shrinkage cracking, which creates gaps where water can pool against the steel.
- Plumbing and Bracing: Drop the post into the hole, resting it on the gravel base. Use two 1x4 wooden braces screwed to the post and staked into the ground on adjacent 90-degree axes. Check for plumb on both axes using a 24-inch magnetic torpedo level.
- Pouring Technique: Pour the concrete in stages, tamping with a rebar rod every 12 inches to eliminate air pockets. Slope the top 2 inches of the concrete away from the post at a 45-degree angle to shed surface water.
Curing Time: Allow a minimum of 48 hours before applying any lateral load (like attaching panels). Full 28-day cure is not required for panel mounting, but the initial set must be rock-solid.
Phase 4: Panel Mounting Hardware and Alignment
Mounting the panels requires specialized hardware to prevent galvanic corrosion and ensure a rattle-free fit.
| Hardware Type | Material Specification | Application Notes |
|---|---|---|
| Panel Brackets | Hot-Dipped Galvanized Steel | Must match the exact rail profile (e.g., 1-inch square). Use self-tapping Tek screws for steel posts. |
| Through-Bolts | 304 Stainless Steel (3/8-inch) | Required for heavy gates or high-wind zones. Prevents shearing under lateral impact. |
| Carriage Bolts | Zinc-Plated Grade 5 | Standard for residential line posts. The smooth dome head prevents tampering from the outside. |
When sliding panels into the brackets, maintain a uniform 1/4-inch gap between the bottom rail and the ground. Use a 2x4 block laid flat on the ground to rest the panel on while you secure the brackets. This ensures perfect horizontal alignment across the entire run.
Phase 5: Navigating Slopes (Racking vs. Stepping)
Ornamental steel fences handle slopes differently than wood. You must choose between racking (parallelogramming the panel) and stepping (stair-stepping the panels).
Racking Method
Best for: Gentle, consistent slopes (up to 12-15 degrees, or roughly a 20% grade).
Procedure: The pickets remain vertical while the top and bottom rails pivot to follow the slope. This requires panels specifically manufactured with swivel-picket retainers. Standard welded panels cannot be racked without breaking the welds.
Stepping Method
Best for: Steep grades exceeding 15 degrees.
Procedure: Panels remain perfectly level, but each panel drops down relative to the previous one, creating a stair-step effect. This requires taller posts to accommodate the drop, and leaves a triangular gap under the downslope end of each panel that must be filled with custom-fabricated steel kick-plates or masonry.
Phase 6: Gate Hanging and Hardware Calibration
A 6-foot double-drive steel gate can easily weigh over 250 pounds. Standard residential hinges will sag within months. For wrought iron-style gates, you must use heavy-duty strap hinges or adjustable ball-bearing butt hinges welded or bolted directly to the gate frame and post.
- Clearance Gaps: Maintain a 1/2-inch to 3/4-inch clearance on the hinge side and a full 1-inch clearance on the latch side to account for thermal expansion of the steel and minor post deflection.
- Drop Rods: For double gates, install a heavy-duty steel drop rod on the inactive leaf. The rod must penetrate at least 4 inches into a concrete sleeve set in the ground to prevent the gate from lifting in high winds.
- Automated Openers: If integrating a cantilever or swing gate operator, ensure the gate posts are upgraded to 4x4-inch steel tubing with a 1/4-inch wall thickness to handle the dynamic torque of the motor.
Post-Installation: Touch-Up and Corrosion Defense
Despite careful handling, installation inevitably results in micro-scratches on the powder coating, particularly where brackets clamp the rails or where concrete splashes the base. Left untreated, these scratches will bloom into rust streaks within a single wet season.
Keep a zinc-rich cold galvanizing compound (such as Thurmalox 245 or Rust-Oleum Cold Galv) on site. Do not use standard spray paint. Zinc-rich primers contain up to 93% pure zinc dust, which provides cathodic protection to the underlying steel, sacrificing itself to prevent rust. Apply the zinc primer to any scratch that exposes bare metal, let it cure for 24 hours, and then top-coat with a matching polyurethane or acrylic enamel spray to match the factory black or bronze finish. Wipe any concrete splatter off the powder coat immediately with a damp sponge; cured concrete will etch the coating permanently.
