How Structural Deck Plans Determine Long-Term Durability

The Blueprint Dictates the Lifespan

Homeowners typically allocate 90% of their planning budget to selecting between composite, PVC, or pressure-treated wood decking. However, the surface material is only the wearing layer. The actual lifespan of an outdoor structure—whether it survives 10 years or 40 years—is determined entirely by the structural deck plans. A premium capped-composite surface will fail prematurely if the underlying framing geometry promotes moisture trapping, thermal sagging, or galvanic corrosion.

According to the North American Deck and Railing Association (NADRA), the vast majority of catastrophic deck failures and premature degradation issues stem from design and framing errors, not material defects. To build a structure that outlasts its warranty, your deck plans must explicitly detail load paths, moisture evacuation routes, and material-specific tolerances.

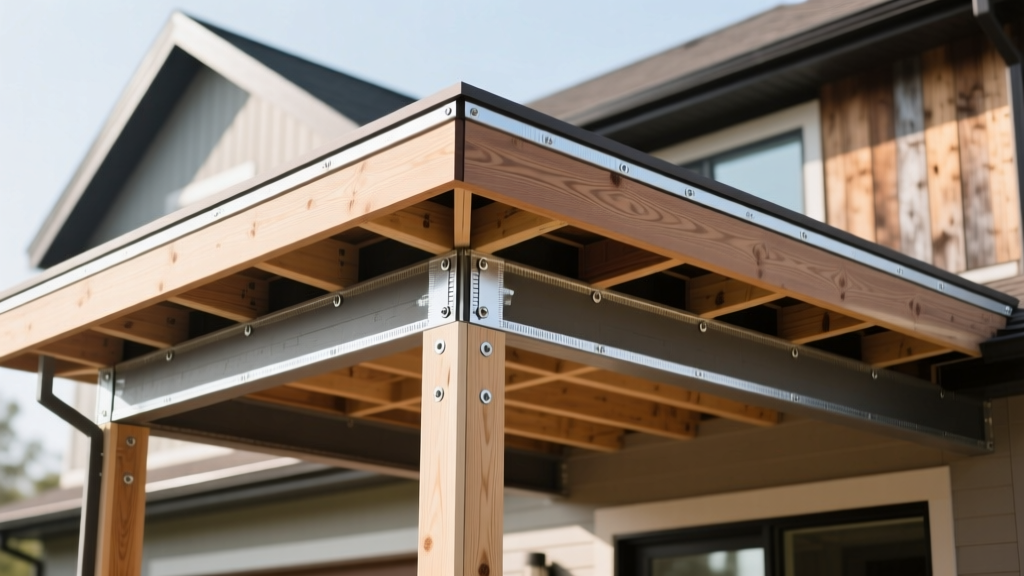

Framing Geometry and Load Path Analysis

Standard builder-grade deck plans often default to the maximum allowable joist spacing to save on lumber costs. While this satisfies minimum building codes for static loads, it ignores long-term dynamic deflection and material creep. Modern decking materials require specific framing geometries to maintain structural integrity over decades.

Joist Spacing and Creep Deflection

Wood-plastic composite (WPC) and mineral-based composites are highly susceptible to thermal creep. When exposed to direct summer UV radiation and heavy point loads (like a hot tub or dense patio furniture), composites will slowly deform over time if unsupported. While many manufacturers list 16 inches on-center (OC) as the maximum joist spacing, durability-optimized deck plans should specify 12 inches OC for any composite or PVC installation. This 25% increase in framing density eliminates mid-span sagging and prevents the 'wavy' deck effect that plagues 10-year-old composite installations.

Beam Sizing and Span Reductions

The International Residential Code (IRC) Section R507.6 provides prescriptive span tables, but these assume standard ground snow loads and dry service conditions. If your deck plans are for a region with heavy snow loads (exceeding 40 psf) or if you are using incised pressure-treated lumber (which has reduced structural capacity), your plans must explicitly note a 15% to 20% span reduction for beams and joists. Relying on standard span tables without adjusting for local environmental factors is a primary cause of mid-life structural bouncing and fastener fatigue.

Moisture Management Blueprints

Water is the ultimate adversary of outdoor structures. If your deck plans do not explicitly detail how water will be evacuated from the substructure, the framing will rot long before the decking surface fails. The American Wood Council DCA 6 Deck Construction Guide emphasizes that preservative-treated wood still requires proper drainage detailing to achieve its intended lifespan.

The 1/4-Inch Per Foot Rule

Durability-focused deck plans must include a grading note specifying a minimum slope of 1/4 inch per foot away from the house. This applies not just to the surface decking, but to the top of the joists. If water pools on flat joists, the pressure-treated lumber will remain saturated, accelerating the leaching of copper azole preservatives and inviting fungal decay. For flat roof-decks or low-slope applications, plans must incorporate a tapered sleeper system or a specialized pedestal drainage mat.

Flashing and Chemical Incompatibility

A critical error in many modern deck plans is the specification of self-adhering bitumen flashing tapes (like Vycor) directly against PVC or certain composite decking profiles. The plasticizers in PVC and the chemical makeup of some composite caps can react with the adhesives in bitumen tapes, causing the adhesive to liquefy and fail within three to five years. Plans should instead specify mechanical 24-gauge galvanized steel or 0.019-inch aluminum Z-flashing that physically tucks behind the house wrap and drapes over the ledger board without relying on chemical adhesion to the decking material.

Material-Specific Plan Adjustments

A single set of framing plans cannot be universally applied across all decking materials. Each material class has unique physical properties that must be addressed in the blueprint phase.

PVC and Thermal Expansion

Cellular PVC decking (such as Azek or Fiberon Promenade) exhibits high coefficients of thermal expansion. A 20-foot PVC board can expand and contract up to 3/8 of an inch between winter and summer temperatures. Deck plans must detail 'expansion joints' every 12 to 16 feet and specify the use of slotted holes for fastener placement at end-joints to allow for longitudinal movement. Failing to plan for this movement results in buckled boards and sheared hidden fasteners.

Aluminum Decking and Galvanic Isolation

Aluminum decking systems (like Wahoo Decks or Craft-Bilt) are immune to rot and insects, but they introduce a new failure mode: galvanic corrosion. When aluminum sits directly on pressure-treated wood (which contains copper-based preservatives) and gets wet, a galvanic cell is created that will rapidly pit and corrode the aluminum. Deck plans for aluminum surfaces must explicitly specify a separation membrane, such as a heavy-duty butyl joist tape (e.g., Trex Protect or G-Tape), applied to the top of every joist and beam before the aluminum tracks are installed.

Real-World Failure Modes from Poor Planning

When deck plans lack durability foresight, the resulting failures are rarely immediate. They manifest as insidious degradation that compromises the structure years down the line.

• Hardware Corrosion: Using standard G90 galvanized joist hangers with modern Alkaline Copper Quaternary (ACQ) or Copper Azole treated lumber. The high copper content acts as a cathode, stripping the zinc off standard hangers in 5 to 7 years. Plans must specify G185 (ZMAX) or stainless steel hardware, as detailed in the Simpson Strong-Tie Corrosion Guidelines.
• Post Base Rot: Embedding 4x4 or 6x6 posts directly into concrete footings. The concrete acts as a sponge, wicking ground moisture into the end-grain of the post. Optimized plans utilize standoff post bases (like the Simpson ABU44Z) that elevate the wood post at least 1 inch above the concrete surface.
• Fastener Fatigue at Ledger Boards: Relying solely on nails or undersized lag screws for the ledger-to-rim-joist connection. Plans must specify 1/2-inch diameter hot-dipped galvanized through-bolts or structural screws (like Simpson SDWS) spaced according to IRC Table R507.9.1.3, accounting for the specific thickness of the house rim joist.

Investing in comprehensive, durability-focused deck plans costs marginally more in the design phase but eliminates the most expensive and dangerous failure modes in outdoor construction. By treating the substructure blueprint with the same rigor as the surface material selection, you ensure the outdoor space remains structurally sound and visually flat for decades.
