Evaluating Various Types of Foundation Systems for Residential Builds

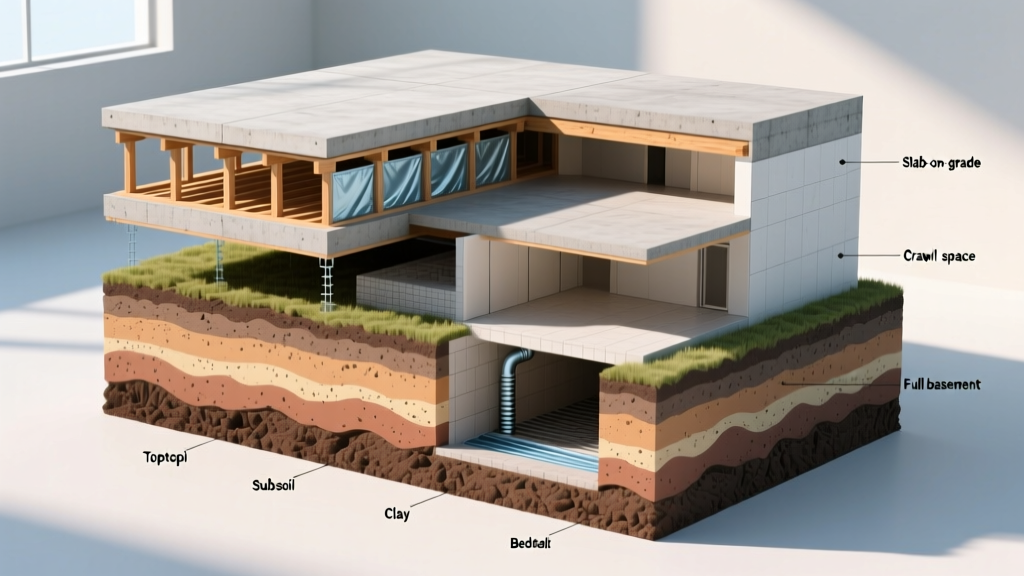

The Soil-Structure Matrix: Matching Foundation Types to Site Conditions

Selecting among the various types of foundation systems is not merely an architectural preference; it is a geotechnical imperative. The structural longevity of any residential build hinges on matching the foundation type to the site’s soil bearing capacity, frost line depth, and hydrostatic pressure profile. In 2026, with material costs fluctuating and extreme weather events increasing, builders must rely on precise soil-structure matrices rather than regional defaults.

Slab-on-Grade: Conventional vs. Post-Tensioned Reinforcement

Slab-on-grade foundations remain the most cost-effective solution for stable, well-draining soils with shallow frost lines. However, the internal reinforcement strategy dictates the slab's resistance to differential settlement and shrinkage cracking.

Conventional Rebar vs. Post-Tension (PT) Cables

Conventional slabs utilize a grid of #4 (1/2-inch) or #5 (5/8-inch) Grade 60 steel rebar spaced at 18 to 24 inches on center. While adequate for sandy loam, this system often fails in expansive clay. Post-tensioned (PT) slabs replace or supplement rebar with 1/2-inch diameter, 270 ksi high-strength steel strands encased in protective plastic sheaths. Once the concrete reaches 3,000 PSI (typically 5 to 7 days post-pour), the tendons are stressed to 33,000 pounds of force, compressing the slab and neutralizing tensile forces from soil movement.

Moisture Control: The 15-Mil Mandate

Regardless of reinforcement, a continuous vapor retarder is non-negotiable. The American Concrete Institute (ACI) recommends a minimum 15-mil polyethylene barrier placed directly beneath the slab to prevent moisture vapor transmission (MVT), which can destroy modern low-VOC floor adhesives and engineered hardwoods.

Crawl Space Foundations: Vented vs. Conditioned Encapsulations

Crawl spaces elevate the floor structure 18 to 36 inches above grade, providing access to plumbing and HVAC systems. The industry has decisively shifted away from traditional vented crawl spaces toward conditioned, encapsulated systems to mitigate mold and structural rot.

The Mechanics of Encapsulation

A properly conditioned crawl space eliminates foundation wall vents and seals the earth floor. According to Building Science Corporation, unvented crawl spaces with ground-sealed vapor barriers significantly reduce humidity levels and energy consumption compared to vented alternatives.

• Vapor Barrier: Install a minimum 20-mil cross-laminated polyethylene liner, overlapping seams by 6 inches and sealing with butyl tape. Extend the liner 6 inches up the foundation walls and secure with mechanical termination bars.
• Insulation: Apply 2 inches of closed-cell spray foam or rigid XPS board (R-10 to R-15) directly to the interior of the stem walls, not the floor joists above.
• Dehumidification: Install a dedicated crawl space dehumidifier sized at 1.5 pints per day per 50 square feet of floor area, or supply conditioned air from the main HVAC system at a rate of 1 CFM per 50 square feet.

Warning: Never apply spray foam to the interior of a masonry stem wall if the exterior lacks a continuous waterproofing membrane and drainage plane. Trapped hydrostatic pressure will cause the masonry to spall and degrade.

Full Basement Foundations: Poured Concrete vs. ICF Systems

Basements maximize usable square footage but carry the highest structural and waterproofing risks. While traditional poured concrete walls (typically 4,000 PSI mix with #5 rebar placed vertically at 48 inches on center) remain common, Insulated Concrete Forms (ICF) are rapidly gaining market share in 2026 due to stringent energy codes.

ICF Performance and Installation

ICF systems, such as Fox Blocks or Nudura, consist of interlocking expanded polystyrene (EPS) foam panels held together by polypropylene web ties. Concrete is pumped into the cavity, creating a solid, steel-reinforced core. The U.S. Department of Energy notes that ICF walls provide continuous insulation, effectively eliminating the thermal bridging inherent in traditional poured concrete.

Deep Foundations: Helical Piers for Unstable Strata

When surface soils lack adequate bearing capacity or when building on steep slopes, shallow foundations (slabs and standard footings) are insufficient. Deep foundation systems transfer structural loads to stable bedrock or dense load-bearing strata.

Helical Piers vs. Drilled Caissons

Helical piers feature a central steel shaft (commonly 2 7/8-inch outer diameter) with welded helical bearing plates. They are mechanically torqued into the ground using hydraulic drive motors. The installation torque directly correlates to the soil's bearing capacity, allowing engineers to verify load resistance in real-time. For a standard 2,500 sq ft residential build, 25 to 40 helical piers driven to depths of 15 to 30 feet typically cost between $25,000 and $45,000. Drilled caissons, which require excavating deep shafts and filling them with reinforced concrete, are generally reserved for commercial loads or sites with massive boulder obstructions that prevent helical pier advancement.

2026 National Cost Matrix: Foundation Systems

The following table outlines current national average costs for residential foundation systems, including excavation, materials, labor, and standard waterproofing. Regional variances can swing these figures by ±25% based on local concrete pricing and union labor rates.

Expert Troubleshooting: Foundation Failure Modes

Symptom: Diagonal Drywall Cracks at Door Corners

Root Cause: Differential settlement. One corner of the foundation is sinking relative to the rest, often due to localized soil consolidation or a leaking underground plumbing line washing away subgrade support.
Remediation: Conduct a hydrostatic level survey to map floor elevations. Install resistance piers or helical piers beneath the compromised footing to transfer the load to stable strata, followed by hydraulic lifting to restore tolerance (typically within 1/4 inch over 20 feet).

Symptom: Horizontal Cracks in Basement Masonry Walls

Root Cause: Lateral soil pressure exceeding the wall's shear capacity. This is a critical structural failure often exacerbated by saturated backfill and freezing temperatures (hydrostatic and frost pressure).
Remediation: Immediately relieve exterior soil pressure by excavating the perimeter. Stabilize the interior using carbon fiber Kevlar straps (epoxied directly to the masonry) or structural steel C-channel beams anchored to the floor slab and upper joists.

Final Selection Framework

Do not default to the foundation system used in your previous build. Mandate a Phase I geotechnical soil boring report (typically $1,200 to $2,500) before finalizing structural plans. Match the 2,000 psf bearing capacity of compacted gravel with a cost-effective slab-on-grade, or deploy post-tensioned slabs and deep piers when the soil report reveals high-plasticity clays. The upfront cost of soil-specific engineering prevents catastrophic structural remediation costs that frequently exceed $50,000 in the first decade of ownership.
