Concrete Control Joint vs Expansion Joint: Application Guide

The Physics of Slab Movement: Shrinkage vs. Expansion

Concrete is a dynamic material. As it hydrates and cures, it undergoes volumetric shrinkage. Conversely, as ambient temperatures rise, the hardened slab undergoes thermal expansion. If a concrete slab is poured as a single, monolithic block without engineered interruptions, these internal stresses will relieve themselves through random, unsightly, and structurally compromising cracking. The "concrete control joint vs expansion joint" discussion is not about choosing one over the other; it is about deploying both to manage specific physical forces. Control joints manage shrinkage by creating a weakened plane, while expansion joints (technically isolation joints) manage thermal growth and structural deflection by providing a physical buffer.

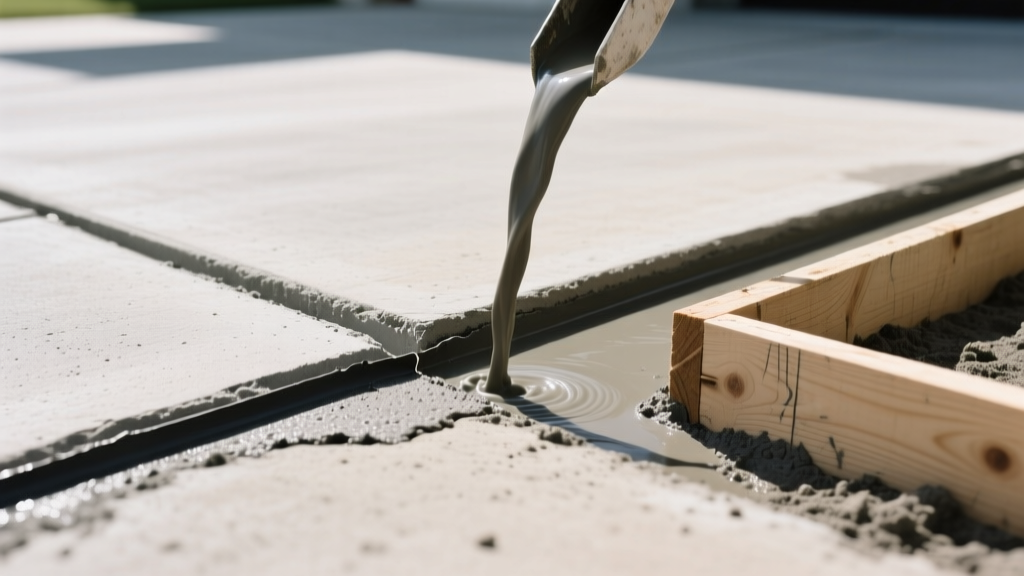

Close-up of fresh concrete driveway showing a tooled control joint intersecting a sealed expansion joint near a wooden form

Concrete Control Joint vs Expansion Joint: Core Differences

Understanding the functional divergence between these two joint types is critical for structural integrity. Below is a comparative matrix detailing their primary applications and physical specifications.

Feature Control Joint (Contraction) Expansion Joint (Isolation)
Primary Purpose Induce cracking at a predetermined, straight line during curing shrinkage. Prevent crushing and spalling by absorbing thermal expansion and structural movement.
Joint Width Narrow (1/8" to 3/16" depending on saw blade). Wide (1/2" to 1" or more, depending on slab length and temperature range).
Depth 25% to 33% of total slab thickness. 100% of slab thickness (fully separates the slab).
Filler Material Often left open, or filled with semi-rigid epoxy/polyurea in industrial settings. Compressible backer rod and elastomeric sealant, or pre-molded fiberboard.
Placement Timing Created during finishing (tooling) or within 4-24 hours of pouring (sawing). Installed before the pour (forms/fiberboard) or sawed immediately after initial set.

Application Showcase: Control Joints in Action

Control joints are the workhorses of flatwork. They dictate where the concrete will crack as it shrinks. The golden rule of control joint spacing is 24 to 36 times the slab thickness. For a standard 4-inch residential slab, joints should be spaced 8 to 12 feet apart. For a 6-inch commercial slab, spacing increases to 12 to 18 feet.

Scenario A: Residential Driveways (4-Inch Slabs)

In residential applications, aesthetics and water runoff are paramount. Contractors typically use a grooving tool during the finishing process to create a 1-inch deep, 1/4-inch wide control joint. This "tooled" joint pushes aggregate down, creating a smooth edge that resists spalling from snowplows or tire traffic. For longer driveways, transverse joints should be spaced at intervals roughly equal to the driveway's width (e.g., a 10-foot wide driveway gets joints every 10 feet).

Scenario B: Industrial Warehouse Floors (6-Inch+ Slabs)

In warehouses subjected to heavy forklift traffic and steel-wheeled carts, tooled joints are unacceptable due to edge spalling. Instead, contractors use early-entry dry-cut saws (like Soff-Cut) within 1 to 4 hours of finishing, cutting a 1/8-inch kerf to a depth of 1.5 inches (25% of the 6-inch slab). Because the kerf is narrow, it must later be filled with a semi-rigid polyurea joint filler (such as Metzger/McGuire Spall Guard) to support the joint edges under heavy point loads.

⚠️ Critical Warning: The Late-Cutting Failure Mode

Waiting longer than 24 hours to saw-cut control joints on a standard slab almost guarantees random shrinkage cracking. As concrete cures, it develops tensile strength rapidly. If the internal shrinkage stress exceeds the concrete's tensile strength before a weakened plane is introduced, the slab will crack randomly. Always monitor ambient temperature and wind conditions; high heat and wind accelerate curing and require earlier cutting.

Application Showcase: Expansion Joints in Action

While control joints manage internal shrinkage, expansion joints manage external boundaries. Whenever a concrete slab abuts a fixed structure—such as a building foundation, a curb, a light pole, or an adjacent older slab—an isolation joint is mandatory. Without it, thermal expansion will cause the slab to push against the immovable object, resulting in "tenting" (upward buckling) or severe edge crushing.

Scenario C: Commercial Pool Decks

Pool decks experience extreme thermal cycling. The dark coping stones absorb massive amounts of solar heat, while the adjacent water keeps the surrounding environment cool. A 50-foot run of pool deck concrete can expand up to 3/4 of an inch in peak summer heat. Here, a 1/2-inch expansion joint is required every 30 feet, and a full isolation joint must separate the deck from the pool coping and the building foundation. These joints are typically filled with a closed-cell polyethylene backer rod and capped with a self-leveling, UV-stable polyurethane sealant to prevent water infiltration and freeze-thaw damage.

Material Specifications & Product Selection

Selecting the correct joint materials is just as critical as the placement geometry. Specifying substandard materials leads to premature joint failure, water ingress, and subgrade erosion. According to guidelines published by the National Ready Mixed Concrete Association (NRMCA) and the Portland Cement Association (PCA), adhere to the following ASTM standards:

  • Pre-molded Fillers: For expansion joints against foundations, specify 1/2-inch asphalt-impregnated cellulose fiberboard meeting ASTM D1751. Avoid cheap, non-impregnated cardboard alternatives that rot when exposed to moisture.
  • Backer Rods: For sawed expansion joints, use closed-cell polyethylene backer rods. The rod diameter must be 25% larger than the joint width to ensure a tight friction fit. This creates the necessary hourglass shape for the sealant, allowing it to stretch without tearing.
  • Elastomeric Sealants: For exterior horizontal joints, specify a Class 25 or Class 50 self-leveling polyurethane sealant meeting ASTM C920 (e.g., Sika Sikaflex-1a or Master Builders MasterSeal SL 1). These offer 25% to 50% movement capability and UV resistance.
  • Semi-Rigid Fillers: For interior industrial control joints, use a 2-part epoxy or polyurea filler with a Shore D hardness of 75-85. This provides enough rigidity to support forklift wheels while allowing minimal thermal contraction.

Troubleshooting Common Joint Failures

Even with perfect layout, execution errors can compromise joint performance. Below is a diagnostic framework for common field issues.

Symptom Root Cause Corrective Action / Prevention
Sealant tearing away from joint edges (Adhesion Failure) Joint walls were dusty, damp, or lacked a primer; backer rod was undersized. Grind joint edges, blow out dust with compressed air, apply manufacturer-specified primer, and use oversized backer rod.
Spalling or chipping along control joint edges Sawing done too late, or joint left unfilled in high-traffic industrial zones. Use early-entry saws within 2 hours of finishing; fill industrial control joints with semi-rigid polyurea.
Random cracking parallel to, but not at, the control joint Joint was not cut deep enough to create a sufficient weakened plane. Ensure saw depth is exactly 25% to 33% of the total slab thickness. For a 4" slab, cut minimum 1" deep.
"Tenting" or upward buckling at the expansion joint Expansion joint was omitted, or filler material was incompressible (e.g., dirt/debris packed in the joint). Always install ASTM D1751 fiberboard or proper backer rod/sealant systems at all rigid boundaries.

Final Site Inspection Checklist

Before signing off on a flatwork project, site supervisors should verify the following joint parameters to ensure long-term durability and compliance with ACI 302.1R standards:

  1. Layout Verification: Confirm control joint spacing does not exceed 36 times the slab thickness, and panels are as close to square as possible (avoid L-shaped or highly rectangular panels).
  2. Depth Check: Use a joint depth gauge to verify saw cuts or tooled grooves meet the 25%-33% depth requirement.
  3. Boundary Isolation: Walk the perimeter to ensure a full-depth isolation joint exists between the new slab and all existing structures, columns, and curbs.
  4. Sealant Profile: Inspect sealed expansion joints to ensure the sealant is recessed slightly below the surface (typically 1/8" to 1/4") to prevent damage from snowplow blades or heavy traffic.

Mastering the deployment of control and expansion joints transforms concrete from a brittle, unpredictable material into a highly engineered, durable surface. By respecting the physics of shrinkage and thermal expansion, and selecting the correct ASTM-rated materials for the specific application, contractors can deliver slabs that remain structurally sound and visually intact for decades.
