Deck Ledger Flashing Specifications and ASTM Performance Ratings

The Engineering of Deck Ledger Flashing

Deck ledger failures account for a disproportionate number of residential structural collapses. The root cause is rarely the failure of the structural lag screws or through-bolts; it is moisture ingress due to substandard deck ledger flashing specifications. When water bypasses the flashing and traps against the house rim joist, it initiates a cycle of wood decay and fastener corrosion that compromises the primary load path. This guide details the exact material specifications, ASTM performance ratings, and dimensional tolerances required to engineer a fail-safe ledger connection.

Material Performance Matrix and ASTM Standards

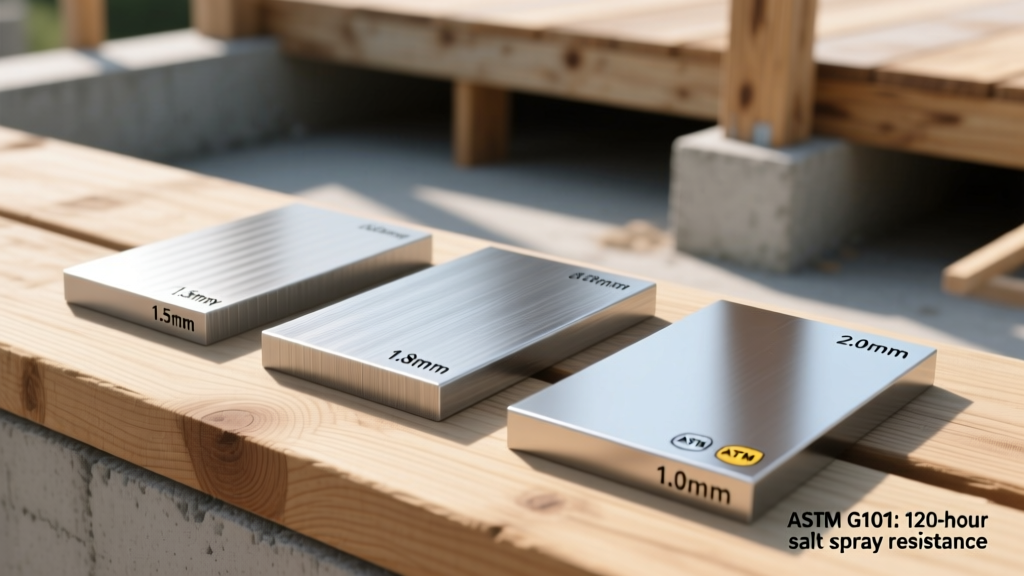

Selecting the correct flashing material requires understanding both the baseline thickness requirements and the material's resistance to environmental degradation. The following matrix outlines the performance specifications for the four primary flashing materials used in modern deck construction.

Copper: The Benchmark Specification

Copper remains the premier specification for deck ledger flashing due to its inherent corrosion resistance and malleability. Per the Copper Development Association, 16-ounce copper (0.0216 inches thick) provides the optimal balance of rigidity for forming crisp Z-flashing profiles and flexibility for accommodating structural settling. Copper naturally develops a protective patina that halts further oxidation, making it entirely immune to the alkaline environment of modern pressure-treated lumber.

Aluminum and the Galvanic Corrosion Threat

Aluminum flashing must meet ASTM B209 with a minimum thickness of 0.019 inches to prevent tearing during installation. However, aluminum presents a severe galvanic corrosion risk when paired with modern Alkaline Copper Quaternary (ACQ) or Copper Azole (CA-C) pressure-treated lumber. These preservatives operate at a high pH (8.0 to 9.0). When moisture bridges the aluminum and the copper-laden wood, a galvanic cell is created, rapidly sacrificing the aluminum. If aluminum must be used, it requires a continuous separation membrane (minimum 40-mil butyl) between the wood and the metal.

Dimensional Specifications and Overlap Tolerances

Material selection is only half the equation; the physical geometry of the deck ledger flashing dictates its hydrological performance. A standard Z-flashing profile must adhere to strict dimensional tolerances to manage bulk water and capillary action.

• Vertical Leg (Upstand): Minimum 4 inches. This leg must extend behind the weather-resistive barrier (WRB) and integrate with the wall's drainage plane. For retrofit installations where siding is not removed, a minimum 2-inch upstand sealed with a compatible polyurethane joint sealant is required.
• Sloped Leg (Roof): Minimum 2 inches wide, pitched at a minimum 15-degree angle away from the structure. This ensures positive drainage and prevents water pooling at the ledger-to-joist intersection.
• Drip Edge and Capillary Break: Minimum 1-inch vertical drop. The bottom edge MUST be hemmed (folded back on itself by 1/2 inch). This hem creates a capillary break, breaking the surface tension of water and forcing it to drop to the ground rather than wicking back underneath the flashing and onto the ledger board.

Membrane Integration and AAMA Standards

Metal or PVC flashing must be integrated with a self-adhering flexible flashing membrane to seal the fastener penetrations and the top edge of the metal upstand. The membrane must comply with AAMA 711-13 (Standard Specification for Self-Adhering Flashing).

Specify membranes with a minimum thickness of 40 mils. Modified bitumen membranes are cost-effective but can degrade under prolonged UV exposure if left exposed before siding installation. Butyl-based membranes offer superior UV stability, broader temperature application ranges (down to 25°F), and do not bleed into PVC or composite decking materials. The membrane must extend a minimum of 2 inches up the wall sheathing and overlap the vertical leg of the metal Z-flashing by at least 1 inch, creating a shingle-lap drainage pathway.

Fastener Specifications for Flashing Systems

The fasteners used to secure the horizontal leg of the flashing to the ledger board are critical vulnerability points. Standard electroplated roofing nails will corrode rapidly.

Fasteners should be spaced no more than 12 inches on center along the horizontal leg. Avoid over-driving the fasteners, which can dent the flashing and create micro-puddles that accelerate localized corrosion.

Technical FAQ: Edge Cases and Troubleshooting

How do I flash a ledger board attached to a brick veneer wall?

Never attach a deck ledger directly through brick veneer, as the veneer is not structural and cannot support the shear loads. The ledger must be through-bolted to the structural framing behind the brick using specialized stand-off brackets (e.g., Simpson Strong-Tie BVLZ). The deck ledger flashing in this scenario must be a custom-formed piece that extends behind the brick's weep screed and overlaps the stand-off brackets, maintaining the 1-inch capillary break.

Is peel-and-stick membrane sufficient without metal flashing?

No. While 40-mil butyl membrane provides excellent waterproofing, it lacks the rigidity to maintain a positive slope away from the ledger. Without a metal or PVC Z-flashing cap, the membrane will sag over time, creating a reverse pitch that traps water against the house sheathing. Membrane is the secondary line of defense; rigid flashing is the primary.

What is the specification for flashing a cantilevered deck?

When deck joists cantilever past the beam, the flashing at the house must still maintain the 4-inch vertical upstand. However, the joist hangers and structural connections must be detailed so the flashing can slide continuously under the joists without being punctured by hanger nails. Use continuous structural screws (like SDS) driven from the top or face to avoid penetrating the flashing plane.
