Foundation Underpinning Repair: Matching Methods to Soil Scenarios

The Diagnostic Framework: Why Soil Dictates the Solution

Foundation settlement is rarely a uniform process. Differential settling occurs when localized soil strata fail to support structural loads, leading to cracked drywall, sticking doors, and compromised load-bearing walls. Selecting the correct foundation underpinning repair method requires matching the structural weight of the building and the specific geotechnical profile of the site. A method that stabilizes a 120-ton masonry mansion on bedrock will catastrophically fail if applied to a 40-ton timber-frame cabin on deep peat.

Before evaluating pier types, geotechnical engineers categorize the failure mode into three primary soil scenarios:

• Expansive Clay (Shrink-Swell): Soils that expand when wet and shrink during droughts, causing cyclical heaving and settling. Common in the American South and Midwest.
• Consolidating Fill or Peat: Poorly compacted backfill or organic matter that compresses slowly over decades under structural weight.
• Erosion-Prone Silts: Fine-grained soils that wash away due to poor surface drainage or plumbing leaks, creating subterranean voids.

According to research on soil-structure interaction from Texas A&M AgriLife Extension, expansive soils cause more financial damage to property owners annually than earthquakes and floods combined. Matching the underpinning technology to these specific soil behaviors is the cornerstone of a permanent repair.

Push Piers vs. Helical Piers: Load & Soil Matching

The two most common deep foundation underpinning repair techniques are resistance (push) piers and helical piers. While both transfer structural loads to stable strata, their installation mechanics dictate entirely different application scenarios.

Scenario A: The Heavy Structure on Expansive Clay (Push Piers)

Push piers are the optimal choice for heavy, multi-story masonry or brick veneer homes experiencing settlement in regions with shallow bedrock or highly compacted load-bearing strata. The installation requires a hydraulic cylinder to drive steel pipe sections (typically 2 7/8-inch or 3 1/2-inch outer diameter) through a foundation bracket. The system relies on the structure's dead load to provide the reaction force necessary to push the pier downward.

Technical Constraint: If the structure weighs less than the frictional resistance of the soil against the pier shaft, the hydraulic ram will simply lift the house rather than drive the pier. This is why push piers are strictly contraindicated for lightweight, single-story wood-frame structures without masonry veneer.

Scenario B: Light Loads and Unknown Bedrock (Helical Piers)

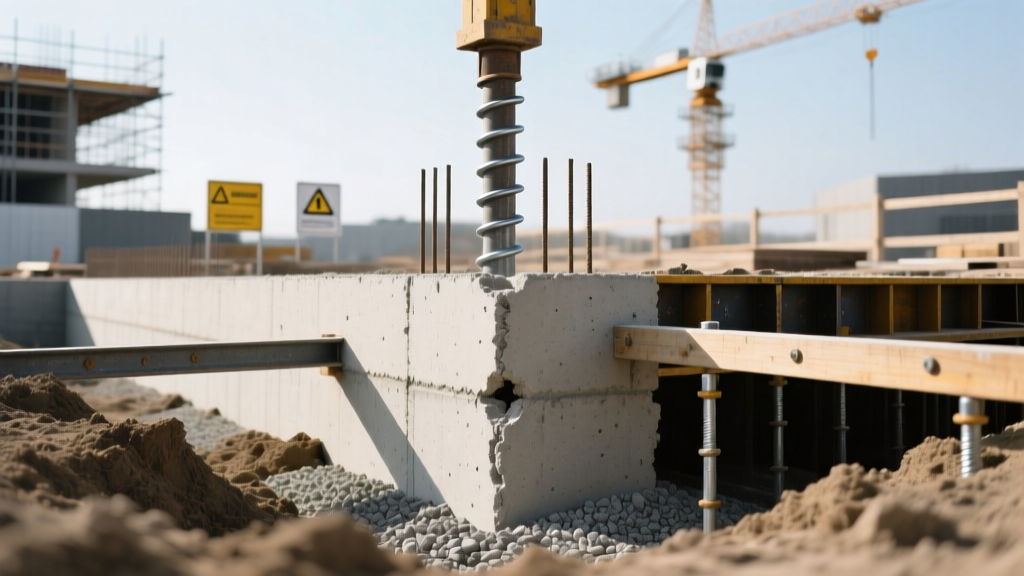

Helical piers feature one or more steel bearing plates (helices) welded to a central shaft. They are torqued into the soil using a hydraulic drive head. The primary advantage is the torque-to-capacity correlation: installation torque directly predicts load capacity. As a general engineering rule of thumb, every 1,000 ft-lbs of installation torque yields approximately 10,000 lbs of ultimate axial capacity, though this varies by shaft size and soil shear strength.

Helical piers are mandatory for foundation underpinning repair on lightweight structures, porches, or additions where bedrock is deeper than 60 feet. Because they do not require structural weight for installation, they can also be used for new construction pre-stabilization and tie-down applications in high-wind or seismic zones to resist uplift forces.

Specialized Applications: Slab Piers and Micropiles

When the failing structural element is not a perimeter stem wall but an interior slab-on-grade, standard wall brackets cannot be used.

Slab Piers: These are essentially push or helical piers adapted with a specialized slab bracket that anchors through the concrete floor. They are used to stabilize interior grade beams or sunken living rooms. The installation requires core-drilling a 6-to-8-inch hole through the slab, excavating the subgrade, and driving the pier to refusal before lifting the slab via hydraulic jacks.

Micropiles: For commercial structures, seismic retrofitting, or sites with zero overhead clearance (such as interior basement repairs), micropiles are the standard. According to the Federal Highway Administration's Micropile Design Manual, these small-diameter (typically 5 to 12 inches) drilled and grouted piles can achieve capacities exceeding 200 tons. They utilize high-strength steel threaded bars encased in cement grout, making them ideal for transferring massive loads through deep, unstable soils or boulder-filled glacial till where displacement piers cannot penetrate.

2026 Cost & Timeline Decision Matrix

Pricing for foundation underpinning repair fluctuates based on steel commodity indices, regional labor rates, and site accessibility. The following matrix reflects current national averages for residential applications.

Note: These costs cover the structural underpinning only. They do not include landscaping restoration, interior drywall repair, or plumbing reconnection, which can add 20% to 40% to the total project cost.

Edge Cases and Common Failure Modes

Even correctly specified foundation underpinning repair systems can fail if edge cases are ignored during the engineering phase. Contractors and engineers must account for the following failure modes:

• Corrosion in High-Sulfate Soils: In regions with high soil sulfate or chloride content (common in coastal and arid environments), standard galvanized steel piers will corrode prematurely. Specifications must require hot-dip galvanizing to ASTM A153 standards (minimum 3.0 oz/ft2 coating) or the use of epoxy-coated shafts to ensure a 75+ year design life.
• Friction-Lock Failure in Push Piers: If push piers are driven through highly expansive clay that subsequently dries and shrinks, the soil pulls away from the pier shaft. If the pier was not driven to true bedrock or a highly dense bearing stratum, the loss of skin friction can cause the structure to settle again. This is why 'friction-only' push pier designs are considered high-risk.
• Hydraulic Hose Rupture During Lifting: The lifting phase requires precise manifold control. If a single hydraulic jack operates at 5,000 psi while adjacent jacks are at 2,000 psi, the localized stress can snap the concrete foundation footing. Proper protocol requires simultaneous, synchronized lifting using a unified hydraulic manifold system, raising the structure no more than 1/8-inch per day to allow the superstructure to adjust without cracking.

For comprehensive guidance on moisture management and foundation durability, the Building Science Corporation emphasizes that underpinning is only half the battle; without correcting surface grading and subsurface drainage, the soil conditions that caused the initial settlement will continue to cycle, potentially overloading the newly installed piers.

Final Verification Protocol

A successful foundation underpinning repair project concludes with a verified lift and load transfer. Require the installing contractor to provide a hydraulic pressure log for every pier, documenting the final driving pressure (for push piers) or installation torque (for helical piers). This data ensures that the installed capacity meets or exceeds the engineered Factor of Safety (typically 1.5 to 2.0 times the calculated structural load), guaranteeing long-term stability for the specific soil scenario at hand.
