Types of Foundation Drainage: A Comparative Guide for Wet Soils

The Physics of Foundation Water Intrusion

Water is the single most destructive force acting on a residential foundation. When evaluating the various types of foundation drainage, it is critical to understand the 'clay bowl effect.' During construction, excavators dig a hole larger than the foundation footprint. The subsequent backfill soil is significantly looser and more permeable than the undisturbed virgin soil surrounding it. This creates a hidden 'bowl' around your home that naturally captures surface runoff and groundwater, directing it straight toward your foundation walls.

To counteract this, drainage systems must manage two distinct types of water: surface water (rainfall and snowmelt) and subsurface groundwater (hydrostatic pressure). No single system handles both perfectly, which is why modern building science relies on a layered approach. Below, we compare the primary foundation drainage systems, detailing their material specifications, installation costs, and inherent failure modes.

Exterior Footing Drains (The First Line of Defense)

Exterior footing drains, commonly referred to as French drains, are installed along the outside perimeter of the foundation footing before backfilling. Their primary job is to intercept groundwater before it can exert hydrostatic pressure against the foundation wall.

Material Specifications & Best Practices

• Pipe Selection: Avoid cheap corrugated flexible pipe. Its ribbed interior slows water flow, encouraging silt buildup, and it crushes easily under backfill weight. Instead, specify 4-inch PVC SDR-35 (ASTM D3034 standard). It features a smooth interior, rigid walls, and standardized fittings.
• Gravel Envelope: The pipe must be surrounded by a minimum of 12 inches of washed 3/4-inch crushed stone. Never use pea gravel (which compacts and restricts flow) or unwashed gravel (which contains fine clay and silt that will instantly blind your filter fabric).
• Filter Fabric: Wrap the gravel envelope in a 4 oz to 6 oz non-woven geotextile fabric. Woven fabrics (like standard landscape weed barrier) will clog with fine particulates within three to five years.
• Slope: While the International Residential Code (IRC) allows level drains if they daylight, industry best practice mandates a minimum slope of 1/8 inch per foot (1% grade) toward a daylight exit or sump pit.

Interior Perimeter Drain Tiles (The Retrofit Standard)

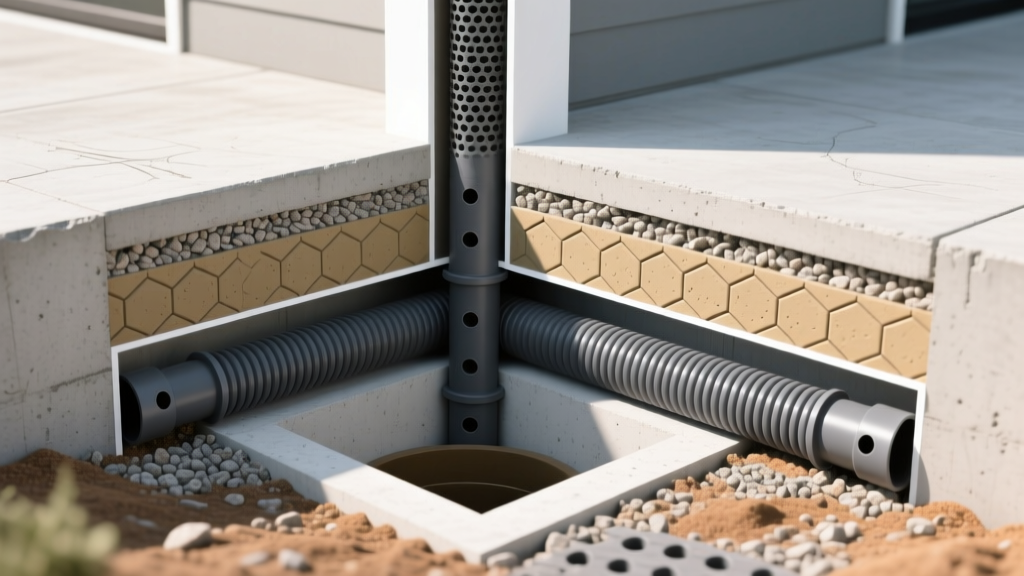

When exterior excavation is impossible due to landscaping, hardscaping, or property lines, interior perimeter drains are the standard solution. Installed beneath the basement floor slab, these systems do not stop water from entering the footing; instead, they catch the water as it enters and route it to an interior sump pump.

Installation Nuances & Sump Integration

Unlike exterior drains that sit next to the footing, interior drain tiles are typically placed on top of the footing, adjacent to the foundation wall. A 12-inch to 18-inch trench is chipped out of the concrete floor, the pipe is laid in washed gravel, and the floor is repoured.

Crucially, interior systems require weep holes or 'bleeders' drilled through the foundation wall at the floor joist level to allow water trapped inside hollow concrete block walls to drain into the interior system. Without these, hydrostatic pressure can cause the block walls to bow or shear.

Surface Drainage & Grading (The Overlooked Hero)

Subsurface drainage systems are designed to handle groundwater, not roof runoff. According to Penn State Extension, up to 80% of residential basement water issues originate from poor surface drainage. If you are dumping 1,000 gallons of roof water directly next to your foundation during a storm, no subsurface pipe can handle that volume.

Grading and Swale Requirements

• The 5% Rule: The IRC requires the ground to slope away from the foundation at a minimum 5% grade (a 6-inch drop over the first 10 horizontal feet).
• Downspout Extensions: Gutters must discharge into solid (non-perforated) PVC extensions that carry water at least 10 feet away from the foundation, ideally terminating in a pop-up emitter or a dedicated dry well.
• Swales: For properties with heavy clay soils or high water tables, shallow vegetated swales should be integrated into the landscaping to passively route surface water toward municipal storm drains.

Comparative Cost & Performance Matrix

The following table breaks down the financial and functional differences between the primary types of foundation drainage systems.

Decision Framework: Diagnosing Your Drainage Needs

Choosing the right system requires an accurate diagnosis of the water source. As noted in Building Science Corporation's Digest 103, treating the symptom without identifying the hydrostatic source leads to expensive, recurring failures.

Step 1: Evaluate Surface Water Management

Before breaking concrete or excavating soil, audit your gutters and grading. If water only enters your basement during heavy, wind-driven rainstorms, and the leaks are located near the top of the foundation wall, your issue is likely surface water. Action: Regrade the soil, extend downspouts 10 feet, and seal exterior cracks with polyurethane injection.

Step 2: Assess Hydrostatic Pressure (Subsurface Water)

If water seeps through the floor-to-wall joint (the cove joint) or pushes up through cracks in the concrete slab days after a rainstorm, you are dealing with a high water table and hydrostatic pressure. Action: Surface grading will not fix this. You must install an interior perimeter drain tile system tied to a high-capacity sump pump to relieve the pressure from beneath the slab.

Step 3: The New Construction Standard

If you are building a new home, the International Association of Certified Home Inspectors (InterNACHI) strongly advocates for a comprehensive exterior approach. Action: Install a PVC SDR-35 exterior footing drain, wrap the foundation in a dimpled drainage mat (like Delta-MS or Platon), and backfill with clean, coarse material. This prevents water from ever reaching the interior environment.

Summary of Authoritative Standards

When contracting any foundation drainage work, ensure your builder or waterproofing specialist references the International Residential Code (IRC) Section R405, which mandates drain tile, gravel, and approved drainage piping for all foundations that enclose habitable space below grade. Bypassing these material specifications to save on initial costs inevitably results in structural degradation and mold remediation expenses that far exceed the price of proper PVC piping and washed gravel.
