Tiny House Building Materials: A Weight & Durability Guide

The Physics of Mobile Structures: Vibration and Shear

Designing a Tiny House on Wheels (THOW) requires a fundamental shift in structural engineering. Unlike a traditional foundation-built home, a mobile tiny house is subjected to a continuous, low-grade earthquake. Highway towing at 65 mph introduces harmonic vibration, lateral G-forces during cornering, and severe wind shear. Standard residential building materials often fail under these dynamic loads, leading to cracked drywall, backed-out nails, and compromised weather envelopes. Selecting the right tiny house building materials is not just about aesthetics or insulation; it is an exercise in weight management and structural resilience.

Every material choice must be weighed against the Gross Vehicle Weight Rating (GVWR) of your trailer. A standard 24-foot tandem-axle tiny house trailer typically has a GVWR of 10,000 to 14,000 lbs. With the trailer itself weighing roughly 2,500 lbs, your material budget for the entire structure—including framing, sheathing, insulation, siding, and interior finishes—is strictly capped between 7,500 and 11,500 lbs.

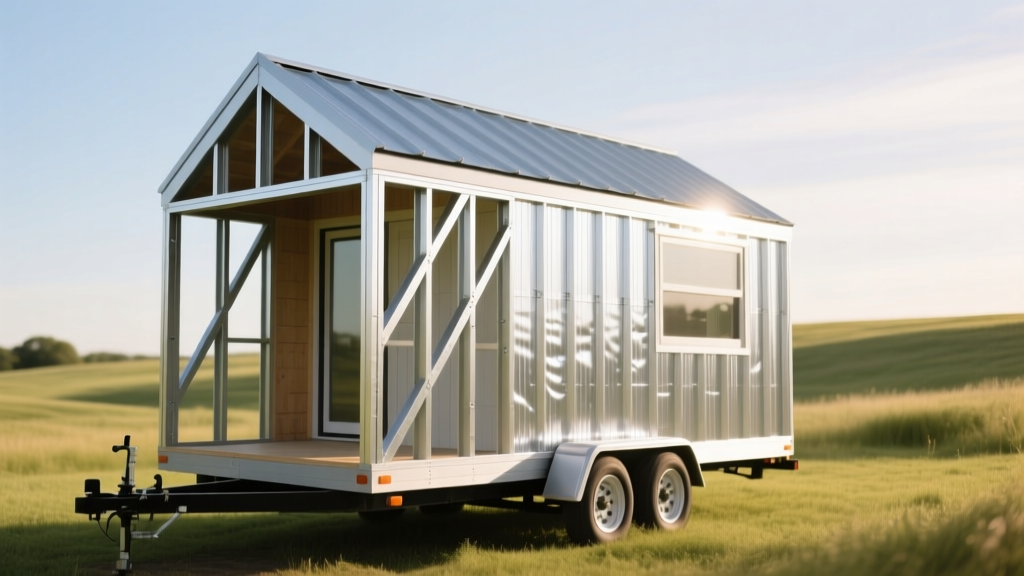

Structural Framing: Wood vs. Light-Gauge Steel (LGS)

The framing skeleton dictates the baseline weight and sheer strength of the structure. While traditional SPF (Spruce-Pine-Fir) dimensional lumber is the default for residential builds, Light-Gauge Steel (LGS) and Structural Insulated Panels (SIPs) have become the industry standard for high-performance mobile builds.

The Thermal Bridging Penalty

If you opt for Light-Gauge Steel to save weight, you must address thermal bridging. Steel conducts heat 400 times faster than wood. Without a continuous exterior insulation layer (like rigid mineral wool or polyiso), an LGS frame will suffer from severe condensation and interior heat loss. For builders prioritizing speed and thermal performance without adding complex exterior layers, 4.5-inch SIPs offer the best balance of structural rigidity and insulation, despite a slight weight penalty over LGS.

Exterior Sheathing and Weather Barriers

In a stationary home, sheathing primarily provides a nailing surface and basic racking resistance. In a tiny house, sheathing is the primary shear wall that prevents the box from racking and collapsing during transit. According to APA - The Engineered Wood Association, the racking strength of your wall assembly is directly tied to the sheathing material and fastener schedule.

Huber ZIP System vs. Traditional CDX + Housewrap

Many tiny house builders default to Huber Engineered Woods' ZIP System sheathing. While it costs roughly 30% more than standard CDX plywood and housewrap, it provides critical advantages for mobile applications:

• Integrated Air/Water Barrier: The bonded weather-resistant coating eliminates the need for a separate housewrap, which can tear or flap loose during transit if a siding piece is damaged.
• Enhanced Shear Strength: ZIP panels are manufactured with a denser resin matrix, offering superior screw-holding power compared to standard OSB.
• Weight Consideration: A 4x8 sheet of 7/16-inch ZIP weighs approximately 54 lbs (1.7 lbs/sq ft), which is marginally heavier than standard OSB but offers a vastly superior structural envelope.

When installing sheathing on a tiny house, reduce the nail spacing at the panel edges to 4 inches (instead of the standard 6 inches) to maximize shear transfer to the trailer's steel subfloor.

Insulation: Maximizing R-Value While Minimizing Mass

Insulation is one of the heaviest hidden components in a tiny house. The U.S. Department of Energy provides extensive R-value guidelines, but for THOWs, density and adhesion are just as critical as thermal resistance.

Closed-Cell Spray Foam (ccSPF)

Closed-cell spray foam (such as Icynene or Demilec) is the undisputed champion for tiny house wall cavities. At 2.0 lbs per cubic foot, it is heavier than open-cell foam or fiberglass batts, but it serves a dual purpose:

1. Thermal Performance: Delivers R-6.5 to R-7 per inch, allowing you to achieve R-21 in a standard 2x4 wall cavity.
2. Structural Adhesion: ccSPF expands and bonds to the framing and sheathing, increasing the overall racking strength of the wall assembly by up to 300%. It effectively glues the wall together, preventing the micro-movements that cause interior finishes to crack.

Materials to Avoid

Fiberglass Batts: These rely on friction to stay in place. In a mobile application, gravity and vibration will cause fiberglass to slump, leaving the top of your wall cavities completely uninsulated and creating massive thermal bridges.

Rockwool (Mineral Wool): While excellent for fire resistance and soundproofing, Rockwool is exceptionally dense (approx. 8 lbs per cubic foot). Insulating an entire 24-foot tiny house with Rockwool can add over 1,500 lbs of dead weight to your trailer, eating into your payload capacity for water tanks and appliances.

Siding Applications: The Weight vs. Impact Trade-off

Exterior cladding accounts for a massive percentage of your total build weight. Choosing the right siding requires balancing highway impact resistance against GVWR limits.

The Fiber Cement Trap: Never use James Hardie fiber cement siding on a tiny house on wheels. While it is fireproof and durable, it weighs roughly 3.0 lbs per square foot and is highly brittle. The torsional flex of the trailer frame during towing will cause fiber cement panels to snap and crack at the fastener points. LP SmartSide (engineered wood) is the superior alternative, offering the look of wood or cedar with an impact-resistant resin-treated substrate that flexes with the trailer.

Interior Finishes: Avoiding the Drywall Trap

Standard 1/2-inch gypsum drywall is fundamentally incompatible with mobile tiny houses. Weighing in at 1.6 lbs per square foot, it is heavy, and its rigid nature guarantees that the taped seams will fracture the first time the trailer hits a pothole or navigates a steep driveway incline.

Lightweight, Flexible Alternatives

• 3/8-inch AC Plywood: Weighs roughly 1.1 lbs/sq ft. When finished with a high-quality primer and paint, it offers a clean, modern look while providing structural backing for mounting heavy cabinets and shelving without the need to find studs.
• Trusscore PVC Panels: Weighing only 0.4 lbs per square foot, these interlocking PVC panels are incredibly popular for tiny house bathrooms and kitchens. They are 100% waterproof, flexible enough to absorb road vibration without cracking, and cut installation time drastically since they require no taping or mudding.
• Shiplap and T&G Pine: While aesthetically pleasing, solid wood expands and contracts with humidity changes. If using wood interior cladding, ensure it is kiln-dried to a moisture content of 6-8% before installation to prevent severe gapping or buckling when the house is exposed to varying climates during travel.

FAQ: Troubleshooting Material Failures

Why did my window trim caulk fail after the first tow?

Standard latex or silicone caulks lack the elongation properties required for a mobile structure. The trailer frame and the wall framing expand and contract at different rates, and road vibration opens micro-gaps. You must use a high-performance polyurethane sealant, such as Sikaflex-1a or Quad Max, which offers up to 600% elongation and remains permanently flexible, absorbing the structural movement without tearing.

Can I use standard residential hinges and hardware on interior doors?

Standard residential door hinges will sag under the constant vibration and dynamic movement of a tiny house. Upgrade to commercial-grade, ball-bearing hinges (minimum 3 per door) and install heavy-duty magnetic catches or roller latches to ensure doors remain securely shut during transit. A swinging door during a move can easily shatter adjacent glass or damage interior finishes.
