Pro Installation Techniques for Construction Insulation Materials

The Hidden Cost of Poor Installation

The thermal performance of any building envelope relies entirely on the execution of its installation. According to the U.S. Department of Energy, even premium construction insulation materials can lose up to 50% of their rated R-value if installed with gaps, compressions, or convective loops. In 2026, with energy codes pushing for net-zero readiness, the margin for error in cavity insulation and continuous exterior insulation is virtually zero. This guide details the precise, field-tested installation protocols for the three dominant insulation categories: fiberglass/mineral wool batts, closed-cell spray polyurethane foam (ccSPF), and rigid polyisocyanurate boards.

Fiberglass and Mineral Wool Batts: The Friction-Fit Protocol

Batts remain the most common residential insulation, yet they are frequently mishandled. The North American Insulation Manufacturers Association (NAIMA) mandates a 'Grade I' installation standard, which requires complete filling of the cavity without gaps, voids, or compression.

Step-by-Step Cavity Preparation and Cutting

1. Cavity Clearing: Remove all drywall debris, protruding nails, and excess framing adhesive from the stud bays. Even a 1/2-inch gap between the batt and the drywall creates a convective loop that degrades thermal performance.
2. Precision Measuring: Measure the exact width of each stud bay. Do not assume standard 14.5-inch or 22.5-inch centers; framing lumber warps and shifts.
3. The Hook-Blade Cut: Use a specialized insulation knife with a hook blade rather than a standard utility knife. Place the batt on a flat surface, compress it slightly with a straight edge, and cut exactly 0.5 inches wider than the measured cavity.
4. Friction Fitting: Insert the batt into the cavity. The extra 0.5-inch width ensures the material presses firmly against the studs, eliminating edge gaps. Do not staple the flanges to the face of the studs if you are installing drywall directly over them; this creates a 0.5-inch air gap. Instead, staple to the inner edge of the stud or use unfaced batts with a separate vapor retarder membrane.

Handling Obstructions and Electrical Boxes

The most significant thermal bridging occurs around electrical boxes and plumbing. Do not simply tear the batt and stuff it behind the wiring. Instead, split the batt's thickness: peel the fiberglass into two layers. Pass one layer behind the electrical box and wire, and lay the second layer over the front of the box, ensuring the vapor retarder facing remains continuous on the warm-in-winter side.

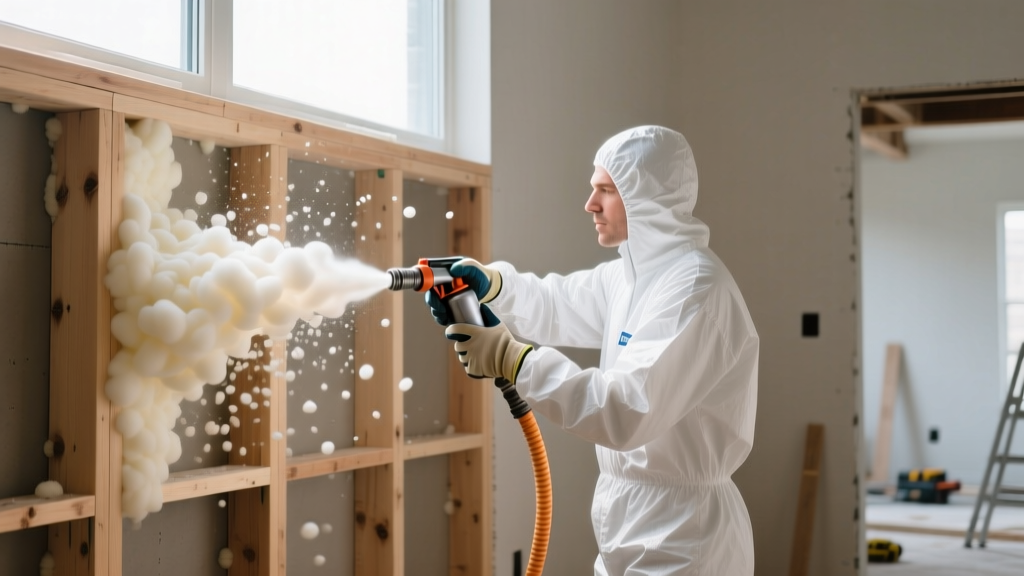

Closed-Cell Spray Foam (ccSPF): Pressure and Temperature Dynamics

Closed-cell spray polyurethane foam (typically 2.0 lb/ft³ density) provides an R-value of roughly R-6.5 to R-7 per inch and acts as both an air barrier and a Class II vapor retarder. However, its chemical reaction is highly sensitive to environmental variables.

Managing the Exothermic Reaction

The chemical reaction between the isocyanate (A-side) and polyol resin (B-side) generates intense heat. If an installer attempts to fill a 2x6 wall cavity (5.5 inches) in a single continuous pass, the core temperature of the foam can exceed 350°F. This 'exothermic scorching' degrades the cellular structure, turning the core brown or black, and releases hazardous volatile organic compounds (VOCs). The mandatory protocol requires applying the foam in multiple 'lifts' or passes of 1.5 to 2 inches, allowing 5 to 10 minutes of cooling time between each layer.

Rigid Foam Board (Polyiso/XPS): Sealing the Thermal Envelope

Rigid boards are primarily used for continuous exterior insulation (ci) to eliminate thermal bridging through wood or steel studs. Polyisocyanurate (polyiso) is the preferred choice for above-grade walls due to its high R-value (R-6.5 per inch) and foil facers that reflect radiant heat.

Adhesive vs. Mechanical Fastening

While mechanical fasteners (cap nails or screws with thermal washers) are required by code for structural wind-load resistance, penetrating the foam creates hundreds of tiny thermal bridges. To mitigate this, modern installation techniques utilize a hybrid approach:

• Ribbon and Dab Adhesive: Apply a continuous bead of low-VOC foam board adhesive (such as Loctite PL 300 or Dow Weathermate) around the perimeter of the board, with three vertical ribbons in the field. This creates an airtight seal and prevents wind-washing behind the insulation.
• Minimal Fastening: Use only the minimum number of mechanical fasteners required by the engineer's wind-load calculations, ensuring they are driven flush, not countersunk, which would crush the foam core.

Common Failure Modes and Diagnostic Fixes

Even with premium construction insulation materials, specific field errors compromise the entire building envelope. The Environmental Protection Agency (EPA) emphasizes that moisture management and air sealing are inextricably linked to insulation performance.

• Convective Looping: Occurs when air moves freely between the cold exterior sheathing and the warm interior drywall, bypassing the insulation. Fix: Ensure the air barrier (drywall or spray foam) is perfectly continuous. Seal all top and bottom plates with acoustical sealant before installing batts.
• Thermal Bridging at Rim Joists: Standard batts often fall away from rim joists due to gravity and irregular framing. Fix: Cut rigid XPS or polyiso blocks to friction-fit between the joists, then spray the perimeter edges with single-component canned polyurethane foam to create an airtight seal.
• Vapor Retarder Misplacement: Installing a Class I vapor retarder (like polyethylene sheeting) on the wrong side of the wall assembly traps moisture inside the cavity, leading to mold and rot. Fix: In mixed-humid or cold climates, use 'smart' vapor retarders (like CertainTeed MemBrain) that alter their permeability based on ambient humidity levels, allowing the wall to dry to either the interior or exterior.

Frequently Asked Questions

Can I install closed-cell spray foam myself using a DIY kit?

While DIY kits exist for small rim-joist applications, whole-wall ccSPF installation requires professional-grade proportioning pumps, heated hoses, and precise temperature calibration. Improper mixing results in uncured, toxic foam that must be professionally remediated at a high cost. For large-scale projects, always hire a certified SPF contractor.

Does mineral wool require a separate vapor barrier?

Unfaced mineral wool batts are vapor-permeable. Whether you need a separate vapor retarder depends on your climate zone. In IECC Climate Zones 5 and higher, a Class I or II vapor retarder is typically required on the interior warm-in-winter side. Always consult local building codes and perform a WUFI hygrothermal analysis for complex wall assemblies.
