XP Gypsum Board Specs: Dimensions, Tolerances, and Standards

The Engineering Behind XP Gypsum Board

While "XP" originated as a proprietary trademark for National Gypsum’s Gold Bond Extreme Protection line, it has evolved into industry shorthand for high-performance mold- and moisture-resistant (MMR) gypsum boards. Unlike standard drywall, which utilizes untreated gypsum and standard paper facers that degrade rapidly when exposed to ambient humidity or liquid water, XP gypsum board integrates hydrophobic core treatments and specialized moisture-resistant facings. Understanding the exact specifications, dimensional tolerances, and ASTM testing thresholds of XP boards is critical for commercial contractors and residential builders aiming to secure system warranties and pass rigorous municipal inspections in high-moisture zones.

Standard Dimensions and Manufacturing Tolerances

XP gypsum boards are manufactured to strict dimensional tolerances outlined by the Gypsum Association. Deviations beyond these thresholds can result in compromised joint integrity, fastener blowouts, or failed fire-rating assemblies. Below are the standard dimensional specifications for commercial and residential XP panels.

Core Composition and Facing Material Specifications

The moisture resistance of XP gypsum board is achieved through a dual-layer defense system targeting both the gypsum core and the exterior facing.

Hydrophobic Core Treatment

The aerated gypsum core is treated during the calcination and slurry mixing process with siloxanes or proprietary wax-emulsion additives. This treatment alters the surface tension of the gypsum crystals, preventing capillary action. According to the Gypsum Association, properly treated MMR cores must demonstrate a water absorption rate of less than 5% by weight when tested via the standard 2-hour immersion method.

Specialized Facers

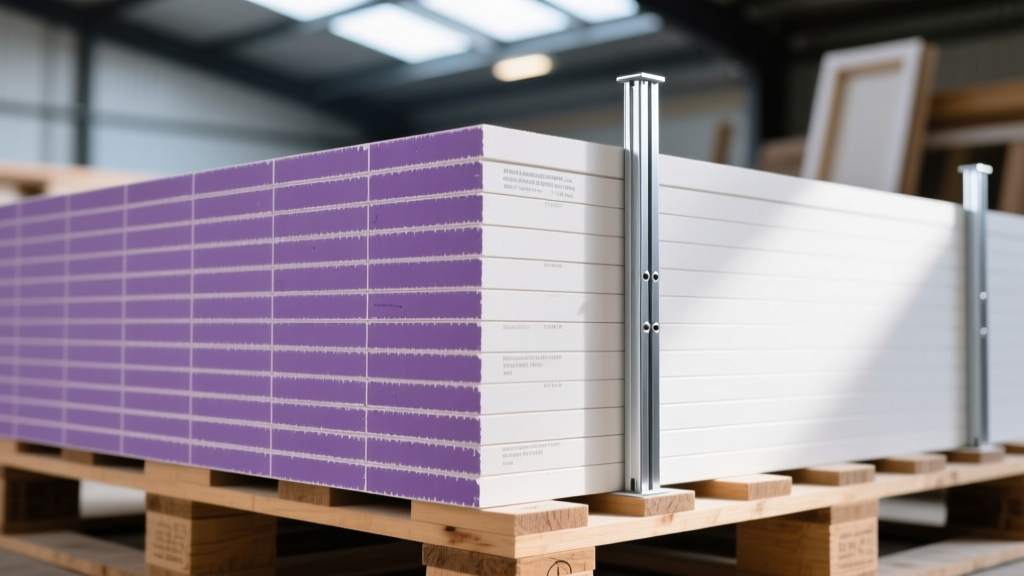

XP boards utilize either a heavy-duty, moisture-resistant paper facing (typically dyed green or purple to denote MMR status) or a coated fiberglass mat.

• Paper-Faced XP: Treated with biocides and water-repellent sizing. Vapor permeance typically exceeds 10 perms (Class III vapor retarder), allowing wall assemblies to dry to the interior.
• Fiberglass-Mat XP (e.g., DensArmor equivalents): Eliminates the organic paper food source entirely. Ideal for high-humidity commercial applications like indoor pool enclosures or unconditioned stairwells where ambient RH frequently exceeds 70%.

ASTM Performance Standards and Testing Thresholds

To be classified and sold as a premium XP or MMR product, the board must pass a gauntlet of standardized tests. Specifiers must verify that the product data sheet explicitly claims compliance with the following ASTM C1396 sub-sections:

• ASTM C473 (Physical Properties): Dictates structural integrity. For 1/2" XP board, minimum flexural strength is 40 lbf (178 N) parallel to fibers. Minimum nail pull resistance is 70 lbf (311 N).
• ASTM C473 (Humidified Deflection): Measures sag resistance. After exposure to 90°F and 90% RH, 1/2" XP board must not deflect more than 1/8" (3.2 mm) over a 24-inch span.
• ASTM E96 (Water Vapor Transmission): Ensures the board does not trap moisture inside the wall cavity. Standard XP paper facers maintain a permeance of >10 perms.

Weight, Load-Bearing, and Structural Specifications

The addition of moisture-resistant treatments and denser cores required for fire-rated XP variants alters the dead load of the assembly. Structural engineers and framing crews must account for these weights, particularly in ceiling applications.

XP Fire-Shield vs. Standard XP: Technical Comparison Matrix

Many builders mistakenly assume all XP boards carry a fire rating. Standard 1/2" XP board is not a fire-rated assembly component. For areas requiring both moisture resistance and a 1-hour or 2-hour fire rating (e.g., bathroom walls adjacent to garage firewalls, or commercial corridor shafts), XP Fire-Shield (Type X) is mandatory.

Fastener Specifications and Installation Clearances

Installing XP board requires adherence to specific fastener protocols to ensure the moisture-resistant facing is not unnecessarily compromised and the board is securely anchored to the framing.

Screw Specifications

• Type: Type S (fine-thread for metal studs) or Type G (coarse-thread for wood framing). Screws must feature a bugle head to dimple the facing without tearing the paper/mat.
• Length: Minimum 1-1/4" for 1/2" board; minimum 1-5/8" for 5/8" board.
• Edge Clearance: Fasteners must be placed no less than 3/8" from the tapered edge and no less than 1/2" from the square end edges to prevent blowouts that expose the untreated core.

Expansion and Moisture Clearances

System Compatibility and 2026 Market Pricing

An XP gypsum board is only as effective as the finishing system applied over it. Using standard joint compound on an XP board voids most manufacturer mold warranties. You must pair XP boards with mold-resistant setting-type or drying-type joint compounds (e.g., ProForm XP or USG Mold Tough) and alkaline-resistant fiberglass mesh tape.

As of early 2026, supply chain stabilization has normalized MMR drywall pricing, though it still commands a premium over standard white board. Expect the following material costs (excluding delivery and taxes):

• 1/2" Standard XP (4x8 sheet): $19.00 - $24.00
• 5/8" XP Fire-Shield (4x8 sheet): $28.00 - $34.00
• 1/2" Fiberglass-Mat XP (4x8 sheet): $26.00 - $31.00

For comprehensive brand-specific technical data sheets and UL assembly designs, always consult the manufacturer directly, such as the National Gypsum Gold Bond brand portal, prior to finalizing commercial submittals.
