Choosing Concrete Paint Outdoor: A Scenario-Based Application Guide

Scenario Matching Matrix: Driveways, Pool Decks, and Foundations

Before purchasing materials, cross-reference your specific application scenario with the required coating properties. The following matrix outlines the non-negotiable performance metrics for common outdoor concrete zones.

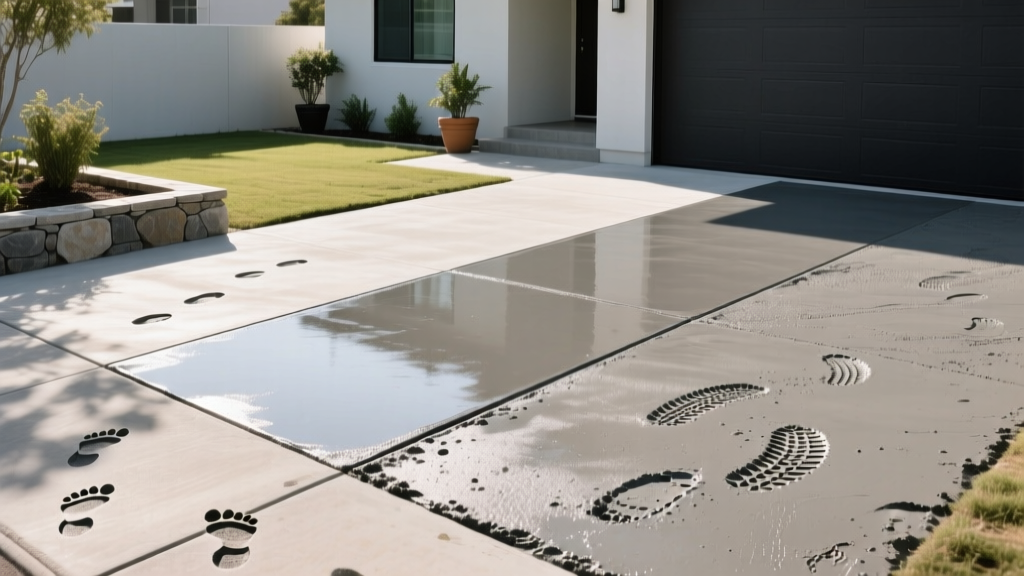

Scenario 1: High-Traffic Driveways & Garage Aprons

Driveways subject concrete coatings to severe mechanical shear and chemical attacks from automotive fluids. The most common failure mode in this scenario is 'hot tire pickup.' When vehicle tires heat up during driving, the rubber expands and softens. Upon parking, the tires cool and contract, physically ripping standard acrylic and latex paints from the concrete surface.

Product Recommendations for Driveways

For residential driveways, a moisture-tolerant polyaspartic topcoat applied over a penetrating silane/siloxane sealer provides the best balance of cost and longevity. Expect to pay between $3.50 and $5.50 per square foot for high-quality polyaspartic materials. If budget constraints require a cheaper alternative, a high-solids, water-based 1-part epoxy (like BEHR Premium 1-Part Epoxy) can suffice, provided it is top-coated with a UV-stable clear urethane to prevent yellowing.

Scenario 2: Pool Decks & Barefoot Zones

Pool decks demand a delicate balance between slip resistance, heat reflection, and chemical resistance to chlorine and saltwater. Standard dark-colored epoxy coatings will absorb solar radiation, raising surface temperatures to over 140°F (60°C) in direct summer sun, causing severe burns to bare feet.

The COF and Heat Reflection Mandate

When selecting concrete paint outdoor for pool surrounds, mandate a minimum wet Coefficient of Friction (COF) of 0.60 to meet ADA safety guidelines. Furthermore, specify coatings formulated with titanium dioxide (TiO2) pigments and infrared-reflective (IRR) technology. Brands like In the Swim and Sherwin-Williams Sher-Crete offer specialized deck coatings that reflect solar heat, keeping surface temperatures up to 20°F cooler than standard pigments.

Application Tip: Do not rely on the paint's inherent texture. Broadcast a polymer-grit or aluminum oxide anti-slip additive (such as SharkGrip) into the final wet coat at a rate of 1 pound per 100 square feet to ensure long-term slip resistance as the coating wears.

Scenario 3: Vertical Foundation Walls & Retaining Structures

Vertical concrete surfaces face entirely different physics than horizontal slabs. They are subjected to lateral hydrostatic pressure from damp soil and constant UV exposure, but they do not endure foot traffic. The goal here is waterproofing and crack-bridging, not abrasion resistance.

Elastomeric masonry coatings, such as Drylok Extreme Masonry Waterproofer, are engineered to stretch and bridge hairline cracks up to 1/16 inch wide. These coatings are applied at a high mil thickness (typically 12 to 15 wet mils per coat). To achieve the manufacturer's warranted hydrostatic pressure resistance (often rated up to 15 psi), you must apply the product at the exact spread rate specified—usually 75 to 100 square feet per gallon. Applying it too thin will compromise the elastomeric membrane's ability to stretch and seal.

The Pre-Paint Preparation Protocol (Where 90% of Jobs Fail)

The International Concrete Repair Institute (ICRI) consistently identifies inadequate surface preparation as the leading cause of coating failure. Concrete must be clean, sound, and properly profiled to allow mechanical interlocking of the paint.

1. Moisture Testing (ASTM D4263): Tape a 16x16 inch square of clear 4-mil polyethylene sheeting to the concrete. Seal all edges with duct tape and leave it for 24 hours. If condensation forms under the plastic or the concrete darkens, the slab has excessive moisture vapor transmission (MVT). You must apply a moisture-mitigating epoxy primer before painting.
2. Efflorescence Removal: White, powdery mineral deposits will block paint adhesion. Remove efflorescence using a stiff-bristle brush and a 10% muriatic acid solution or a dedicated commercial efflorescence remover. Neutralize the surface thoroughly with clean water afterward.
3. Surface Profiling: According to the Portland Cement Association (PCA), smooth troweled concrete must be etched or ground to achieve a Concrete Surface Profile (CSP) of 2 or 3. For horizontal slabs, mechanical diamond grinding (using a 40-grit metal bond diamond) is vastly superior to acid etching, as acid etching can leave residual salts that compromise adhesion.
4. Alkalinity Check: New concrete cures for a minimum of 28 days and maintains a high pH (often above 12). Ensure your chosen primer is alkali-resistant, or wait until the pH drops below 10 before applying standard acrylics.

Cost, Coverage, and Lifespan Expectations

Budgeting for exterior concrete coatings requires looking beyond the initial cost per gallon. High-solids coatings cost more upfront but offer superior coverage and significantly longer lifespans, reducing the lifetime cost of ownership. The following data reflects average material costs and performance expectations for 2026.

Environmental and VOC Considerations

When purchasing concrete paint outdoor, always verify the Volatile Organic Compound (VOC) content. The Environmental Protection Agency (EPA) and local air quality districts enforce strict VOC limits on architectural coatings. Solvent-based epoxies and polyurethanes often exceed 250 g/L, making them illegal to purchase or apply in states like California, New York, and parts of Texas. Always opt for advanced water-based polyaspartic hybrids or high-solids, low-VOC acrylics to ensure compliance without sacrificing mechanical durability.
