Types of Charity Foundations: Structural Systems for NGO Builds

The Engineering Reality of Non-Profit Construction

When structural engineers and project managers evaluate the types of charity foundations suitable for affordable housing, disaster relief shelters, and community centers, the decision matrix extends far beyond standard residential parameters. Non-governmental organizations (NGOs) and non-profits like Habitat for Humanity or the Mennonite Disaster Service must balance three competing constraints: strict material budgets, unpredictable volunteer labor skill levels, and the need for rapid deployment in challenging soil conditions.

As of 2026, the cost of ready-mix concrete and structural steel continues to dictate foundation selection for 501(c)(3) building programs. A standard 1,200-square-foot affordable housing footprint requires a foundation system that minimizes heavy machinery rental while maximizing the utility of unskilled volunteer labor for tasks like formwork assembly, rebar tying, and trenching. Below, we break down the primary structural systems utilized in the non-profit sector, analyzing their material specifications, cost profiles, and labor requirements.

Comparing the Primary Types of Charity Foundations

The phrase "charity foundations" in a structural context refers to the specific footing and slab systems optimized for non-profit construction pipelines. Here is a technical comparison of the three most prevalent systems.

1. Post-Tension Slab-on-Grade (The Habitat Standard)

For expansive clay soils prevalent in the American Southeast and Texas—regions with high concentrations of affordable housing initiatives—post-tensioned (PT) slab-on-grade foundations are the industry standard. This system utilizes high-strength steel tendons to compress the concrete, preventing cracking when the underlying soil swells or shrinks.

• Material Specifications: Minimum 3,000 PSI concrete mix with a 0.45 water-to-cement ratio. Tendons are typically 1/2-inch diameter, Grade 270 low-relaxation 7-wire strands conforming to ASTM A416 standards. Slabs are poured to a nominal 4-inch thickness with 12-inch deep stiffening grade beams spaced at 8-to-10-foot intervals.

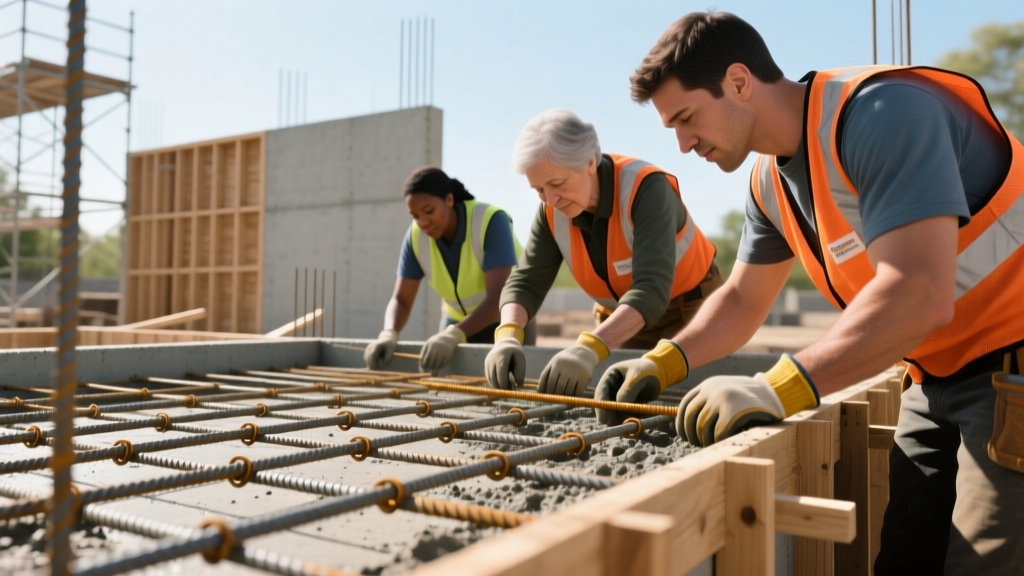

• Volunteer Integration: High. Volunteers can safely assemble the wooden perimeter forms, lay the polyethylene vapor barrier, and tie the non-stressed temperature rebar (#3 or #4 Grade 60). The actual stressing of the tendons (typically to 33,000 lbs of force per cable) must be executed by certified PTI technicians using hydraulic jacks.
• Cost Profile: $6.50 to $8.50 per square foot (materials and sub-contracted stressing), making it highly cost-effective for large-scale subdivision builds.

2. Helical Pier and Grade Beam Systems (Disaster Relief & Flood Zones)

When NGOs deploy to coastal regions or post-hurricane zones, foundations must comply with strict Base Flood Elevation (BFE) requirements outlined in FEMA P-499 coastal construction guidelines. Helical piers elevate the structure above storm surge levels while resisting scour and liquefaction.

• Material Specifications: Galvanized steel shafts (typically 2-7/8-inch outside diameter with a 0.25-inch wall thickness) featuring helical bearing plates welded at the lead section. Shafts are driven to a specified torque refusal (often 6,000 to 8,000 ft-lbs) to verify load capacity. A reinforced concrete grade beam or timber pile cap transfers the structural load to the piers.
• Volunteer Integration: Low. Driving helical piers requires skid-steer loaders equipped with hydraulic drive heads and laser-guided torque monitoring. Volunteer labor is generally restricted to site clearing and grade beam formwork.
• Cost Profile: $14.00 to $19.00 per square foot. The premium cost is offset by the elimination of soil excavation and curing time, allowing framing to begin within 48 hours of installation.

3. CMU Pier and Crawl Space (Rural and Mountain Builds)

For rural builds where ready-mix concrete trucks cannot access the site, traditional Concrete Masonry Unit (CMU) piers supporting a wood-framed floor remain a staple for charitable organizations.

• Material Specifications: 8x8x16-inch ASTM C90 load-bearing blocks, stacked on isolated 24x24x12-inch concrete footings. Piers are reinforced with a single #4 vertical rebar and filled with 2,000 PSI coarse grout. Wood girders are anchored using hot-dipped galvanized L-bolts embedded into the grout core.
• Volunteer Integration: Very High. Block laying, mortar mixing, and grout pouring are highly accessible to volunteer crews under the supervision of a single licensed mason. However, the curing time and manual labor intensity slow the overall project timeline.
• Cost Profile: $4.00 to $6.00 per square foot, representing the lowest hard-cost option for off-grid or difficult-to-access terrain.

Cost, Equipment, and Volunteer Labor Matrix

Selecting the right foundation requires mapping the NGO's equipment inventory against the available volunteer skill base. The matrix below outlines the operational requirements for a standard 1,200 sq. ft. single-family footprint.

Navigating Flood Zones and Expansive Soils

Charitable organizations frequently acquire distressed or donated land, which often presents severe geotechnical challenges. According to the National Association of Home Builders (NAHB), affordable housing developers increasingly rely on specialized foundation engineering to make unbuildable lots viable for community projects.

For coastal builds, FEMA regulations dictate that any foundation system in a V-Zone (high-velocity wave action) must be open below the BFE to allow water flow. This eliminates slab-on-grade options entirely, forcing NGOs to utilize driven timber piles, helical piers, or cast-in-place concrete columns. The premium cost of these elevated systems is often offset by state-level disaster mitigation grants available to registered 501(c)(3) entities.

Insulated Concrete Forms (ICF) for Community Shelters

When the project scope shifts from single-family housing to multi-use community shelters or emergency warming centers, Insulated Concrete Forms (ICF) emerge as a superior foundation and stem-wall choice. ICF systems utilize interlocking expanded polystyrene (EPS) foam blocks that are stacked dry by volunteers, then filled with 4,000 PSI pea-gravel concrete.

• Thermal & Structural Benefit: Provides a continuous R-22 insulation value from the footing to the above-grade stem wall, eliminating thermal bridging and reducing the shelter's long-term HVAC operational costs by up to 30%.
• FEMA P-361 Compliance: When reinforced with #5 vertical rebar at 16-inch on-center spacing and tied into a heavily reinforced grade beam, ICF stem walls can meet the impact resistance requirements for community safe rooms, protecting occupants from 250 mph wind-borne debris.

Decision Framework for Site Selection

Project managers should apply the following logic tree to determine the optimal foundation system for their next charitable build:

1. Is the site located in a designated FEMA Floodway or V-Zone?
   • Yes: Proceed directly to Helical Piers or Driven Timber Piles. Slab systems are code-prohibited.
   • No: Advance to soil analysis.
2. Does the geotechnical report indicate a Plasticity Index (PI) greater than 25?
   • Yes: Specify a Post-Tension Slab-on-Grade with a structural engineer's ribbing design. Do not use CMU piers.
   • No: Advance to access and labor analysis.
3. Is the site accessible to 10-yard concrete mixer trucks and pump booms?
   • Yes: Post-Tension Slab or ICF Stem Walls are optimal for speed and volunteer integration.
   • No (Rural/Mountain): Default to CMU Pier and Crawl Space utilizing localized bagged concrete and manual block laying.

Optimizing the Supply Chain for Non-Profits

Beyond structural design, the financial viability of these foundation systems relies on strategic procurement. Leading NGOs negotiate national accounts with suppliers like Vulcan Materials or Martin Marietta to secure ready-mix concrete at 15% to 20% below market rates. Furthermore, post-tensioning hardware suppliers frequently donate the anchorage chucks and bearing plates as in-kind corporate sponsorships, provided the non-profit can supply the labor for formwork and concrete placement. By aligning the structural engineering requirements with the realities of volunteer labor and donated material supply chains, non-profits can deliver resilient, code-compliant foundations that ensure the longevity of their community investments.
