Architectural Asphalt Shingle Installation: Step-by-Step Guide

Pre-Installation: Decking Inspection and Preparation

A successful architectural asphalt shingle installation begins long before the first bundle reaches the roof. The substrate must meet strict structural requirements to prevent premature shingle failure, such as ridging or telegraphing. For residential applications, the National Roofing Contractors Association (NRCA) recommends a minimum of 5/8-inch CDX plywood or 7/16-inch oriented strand board (OSB) for roof decks with 24-inch on-center truss spacing.

Decking Fastening and Tolerances

Inspect the existing deck for soft spots, delamination, or water damage. Replace any compromised panels. When securing new decking, use 8d ring-shank nails or 2-1/2-inch deck screws spaced at 6 inches along the edges and 12 inches in the field. Crucially, maintain a 1/8-inch gap between all panel edges to accommodate thermal expansion. Failing to leave this expansion gap is a primary cause of deck buckling, which will immediately void the warranty on premium shingles like GAF Timberline HDZ or Owens Corning Duration.

Drip Edge and Underlayment Application

Proper water management at the eaves and rakes is non-negotiable. Install a corrosion-resistant metal drip edge (minimum 28-gauge galvanized steel or aluminum) directly onto the decking at the eaves, securing it with roofing nails every 12 inches in a staggered pattern. At the rakes (gable edges), the drip edge must be installed over the underlayment to direct wind-driven rain away from the fascia.

Synthetic vs. Felt Underlayment

While 15 lb and 30 lb asphalt-saturated felt (ASTM D226) were historically standard, synthetic underlayment (such as Titanium UDL30 or GAF FeltBuster) is now the dominant choice. Synthetic options offer superior tear strength, UV resistance if left exposed during construction delays, and a lighter weight that reduces structural load. Roll out the synthetic underlayment horizontally, overlapping horizontal seams by 2 inches and vertical end-laps by 4 inches, fastening with plastic-capped nails to ensure a watertight seal.

Starter Strip and First Course Alignment

The starter course is the most frequently botched element of an asphalt shingle roof. Its purpose is to seal the bottom edge of the first course and fill the gaps where the cutouts would otherwise be. Never use a standard three-tab shingle flipped upside down as a starter strip; this leaves the bottom edge vulnerable to wind uplift and water infiltration.

Use a manufacturer-specific starter strip (e.g., GAF Pro-Start or WeatherBlocker). Apply a continuous 1/4-inch bead of plastic roof cement to the top of the starter strip before laying the first course. The starter strip should overhang the drip edge by exactly 1/4 to 3/8 inch. To ensure the entire roof remains perfectly straight, snap horizontal chalk lines every 5 inches (for standard metric shingles) and vertical chalk lines every 36 inches to guide your staggered end-laps.

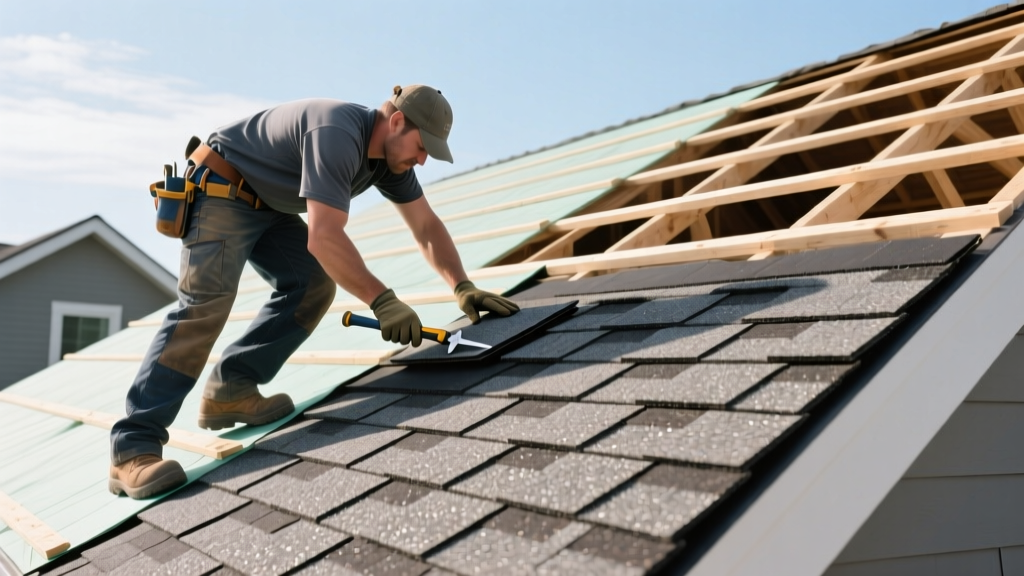

Field Shingle Application and Nailing Protocols

Architectural shingles rely on a precise nailing zone, often referred to as the "common bond" area. Driving nails too high (into the sealant strip) or too low (exposed on the shingle face) will compromise wind resistance and void the manufacturer's warranty. Always use 11-gauge, hot-dipped galvanized roofing nails with a 7/16-inch diameter head.

Wind Resistance Nailing Matrix

Nailing requirements scale based on the building's geographic wind zone. Refer to the table below to ensure your fastening pattern meets local building codes and manufacturer specifications for high-wind warranties.

As of 2026, the national average for a complete architectural asphalt shingle roof replacement ranges from $5.50 to $8.50 per square foot installed. This price includes synthetic underlayment, ice and water shield at the eaves, and the 6-nail high-wind application pattern, which has become a baseline expectation for quality contractors.

Valley and Ridge Flashing Techniques

Roof valleys channel massive volumes of water and require reinforced protection. The closed-cut valley method is currently preferred over the woven method for architectural shingles, as it provides a cleaner aesthetic and reduces the risk of debris damming.

1. Valley Preparation: Install a 36-inch wide strip of self-adhering ice and water shield centered in the valley, or use a pre-formed painted metal valley liner (minimum 28-gauge).
2. Shingling the Low-Slope Side: Run the shingles from the lower-slope roof plane across the valley centerline, extending them at least 12 inches onto the steeper plane. Do not nail within 6 inches of the valley center.
3. The Closed Cut: Snap a chalk line on the steeper slope, 2 inches from the valley center. Lay the shingles from the steeper slope up to this line, and cut them precisely along the chalk line. Apply a 3-inch band of roofing cement under the cut edges to seal them against water intrusion.

Ridge Venting and Cap Shingles

Adequate exhaust ventilation is critical to prevent attic condensation and shingle blistering. Install a continuous ridge vent (such as Cobra III or ShingleVent II) providing a minimum of 1 square inch of net free area per linear foot of ridge. Cover the vent with manufacturer-specific ridge cap shingles. Nail the ridge caps 1 inch from the edge and 1 inch below the sealant line, ensuring the nails penetrate the roof deck, not just the underlying shingles.

Common Installation Failures and Edge Cases

Even premium materials like CertainTeed Landmark or Malarkey Legacy will fail if subjected to poor workmanship. Inspect your work against these common failure modes:

• Nail Pops and Zippering: If nails are driven at an angle rather than perfectly perpendicular to the deck, the shingle will not lay flat. Over time, thermal cycling will cause these angled nails to back out, puncturing the shingle above it and creating a "zipper" effect that leads to blow-offs.
• Over-Driven Nails: Using pneumatic nail guns without properly calibrating the air pressure often results in nails driven too deep, crushing the fiberglass mat and breaking the asphalt seal. The nail head should sit perfectly flush with the shingle surface, without cutting into the granular coating.
• Inadequate Winter Sealing: Architectural shingles rely on solar heat to activate the factory-applied asphalt sealant strips. If installing in ambient temperatures below 40°F (4°C), the sealant will not bond. You must manually apply quarter-sized dabs of approved asphalt roofing cement to the underside of each shingle tab to prevent winter wind blow-offs until spring temperatures rise.
• Flashing Integration Errors: Step flashing along sidewalls must be interwoven with each individual course of shingles. A common shortcut is using a single continuous piece of flashing (base flashing) against a wall, which inevitably leaks as the building settles and shifts.

For comprehensive technical bulletins and warranty requirements specific to your chosen product line, always consult the GAF Residential Roofing portal or the respective manufacturer's current installation manual before beginning your project.
