R Value Building Materials: Wall Assembly Application Guide

The "Whole-Wall" R-Value Reality Check

When specifying r value building materials, relying solely on the center-of-cavity R-value printed on a batt insulation package is a critical engineering error. A standard 2x6 wood-framed wall cavity measures 5.5 inches deep. If you fill it with R-21 fiberglass batts, the cavity itself performs at R-21. However, the wood studs (which have an R-value of roughly 1.25 per inch, or R-6.8 for a 2x6) occupy approximately 25% of the total wall area. This thermal bridging drags the "clear-wall" R-value down to roughly R-15. Once you factor in windows, doors, headers, and rim joists, the "whole-wall" R-value often drops below R-13.

To achieve high-performance envelopes that meet the stringent 2024 and 2026 International Energy Conservation Code (IECC) mandates, builders must shift from cavity-only insulation to hybrid assemblies utilizing continuous insulation (ci). This application guide details how to select, layer, and install high R-value materials to eliminate thermal bridging and manage moisture dynamics.

Material Matrix: R-Value per Inch & Application Best Practices

Not all insulation materials behave identically under temperature fluctuations or moisture exposure. Below is a technical comparison of the primary rigid and semi-rigid exterior insulation materials used in modern wall assemblies.

Note on Polyiso Thermal Drift: Polyisocyanurate relies on blowing agents trapped in its cells. In cold temperatures (below 50°F), the R-value per inch can drop significantly due to the condensation of these gases. Always use the LTTR (Long-Term Thermal Resistance) rating for cold-climate energy modeling.

Step-by-Step Application: Designing a High-R Envelope

Achieving a target whole-wall R-value of R-25 to R-30 requires a systematic approach to layering materials. According to the Building Science Corporation's "Perfect Wall" framework, the environmental control layers must be positioned on the exterior of the structure.

Step 1: Apply Exterior Continuous Insulation (ci)

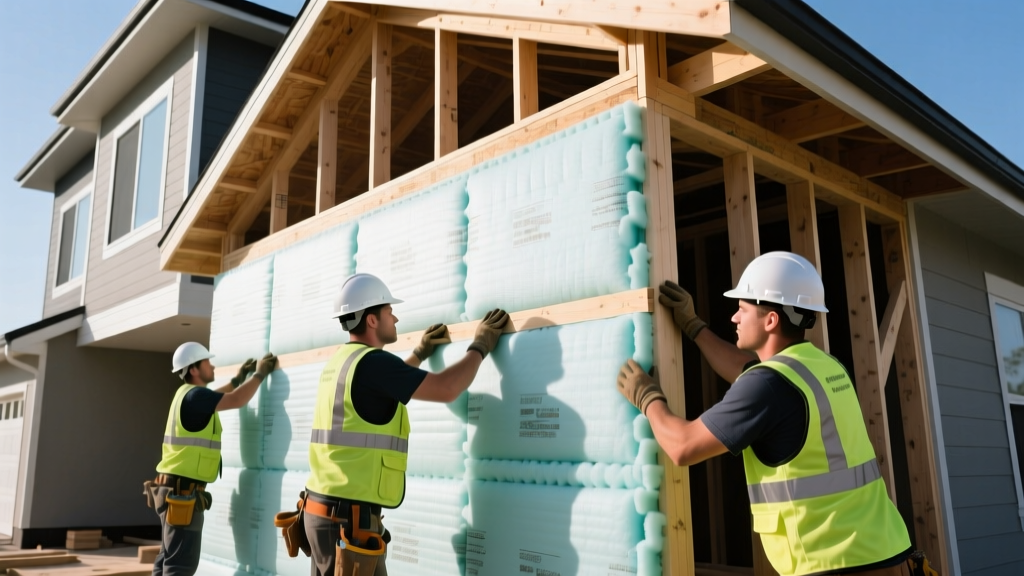

Install rigid insulation directly over the structural sheathing (OSB or plywood). For a 2x6 framed wall in Climate Zone 5, you must install a minimum of 1.5 inches of polyiso (R-9.0) or 2 inches of EPS (R-8.0) to keep the sheathing above the dew point during winter. Use cap nails or structural screws with thermal-isolating washers to minimize fastener thermal bridging.

Step 2: Cavity Insulation Selection

Fill the stud bays with a material that resists convective looping. Dense-pack cellulose (R-3.7/inch) or high-density fiberglass batts (R-4.2/inch) are preferred over standard low-density batts. If budget allows, a "flash-and-batt" approach—applying 1.5 inches of closed-cell spray foam against the interior sheathing and filling the rest with mineral wool—provides an exceptional air seal and high cavity R-value.

Step 3: Air and Vapor Control Layer Placement

The placement of your vapor retarder is dictated by your exterior R-value ratio. The exterior ci must comprise a specific percentage of the total wall R-value to prevent interior moisture from condensing on the cold backside of the sheathing.

Climate Zone Decision Framework

The U.S. Department of Energy and the IECC mandate specific continuous insulation minimums based on climate zones to mitigate thermal bridging. Use this framework when specifying r value building materials for new construction:

• Zones 1, 2, and 3 (Warm/Hot): Exterior ci is generally optional for code compliance, but adding 0.5 inches of EPS or mineral wool (R-2 to R-4) drastically reduces summer heat gain and HVAC loads. Focus on high-SHGC (Solar Heat Gain Coefficient) management and radiant barriers.
• Zone 4 (Mixed-Humid): Minimum R-5 continuous insulation required over 2x4 walls, or R-7.5 over 2x6 walls. Polyiso or XPS are standard here. Ensure the exterior R-value is at least 20% of the total assembly R-value.
• Zone 5 (Cold): Minimum R-7.5 over 2x4 walls, or R-10 to R-15 over 2x6 walls. At 2 inches of polyiso (R-12), the sheathing remains warm enough to safely use an interior Class III vapor retarder.
• Zones 6, 7, and 8 (Very Cold/Arctic): Requires R-10 to R-20+ of exterior ci. Builders frequently use a double-stud wall or Larsen truss system to achieve R-30 to R-40 whole-wall values without relying solely on 4+ inches of expensive rigid foam.

Common Installation Failures & Mitigation Strategies

Even the highest R-value materials will underperform if installed incorrectly. Field inspections consistently reveal three major failure modes in high-R wall assemblies:

1. Foam Shrinkage and Gapping: Polyiso and XPS boards can shrink slightly over time or expand/contract with seasonal temperature swings. If boards are butted tightly without taping, gaps will open, creating linear thermal bridges and air leaks. Mitigation: Stagger vertical and horizontal joints between layers of foam. Seal all seams with UV-resistant, vapor-permeable acrylic tape (e.g., Siga Wigluv or 3M All Weather Flashing Tape) to create a continuous air barrier.
2. Fastener Thermal Bridging: Attaching heavy cladding (like brick veneer or fiber cement) through 3 inches of foam using standard steel z-girts or masonry ties creates massive thermal shorts. Steel conducts heat 400 times faster than wood. Mitigation: Use structural composite screws (like FastenMaster TrussLOK) or fiberglass/carbon-fiber masonry ties that penetrate the foam and anchor directly into the structural studs or concrete backup.
3. Compression of Cavity Batts: Forcing a 6.25-inch R-21 fiberglass batt into a 5.5-inch 2x6 cavity compresses the material. While the R-value per inch increases slightly due to density, the overall R-value of the batt drops to roughly R-19. Mitigation: Specify batts manufactured specifically for 2x6 cavities, or switch to mineral wool (e.g., Rockwool Comfortbatt), which is denser and maintains its R-value better under slight compression.

"The transition to high-R building envelopes is not just about adding more insulation; it is about the precise sequencing of control layers to manage heat, air, and moisture simultaneously." — Building Science Digest, Moisture Control Guidelines.

Final Specification Directive

When finalizing your material schedules, mandate that subcontractors provide the LTTR (Long-Term Thermal Resistance) data sheets for all rigid foam products, not just the aged R-value. Specify integrated sheathing systems (such as Huber Zip-R) where the polyiso is factory-laminated to the OSB to reduce on-site labor and eliminate the air gap between sheathing and foam. By treating the wall as a unified thermodynamic system rather than a collection of individual R-values, you ensure the building performs to its engineered specifications for decades.
