Choosing the Right Steel Framing Solutions by Grade and Gauge

Decoding ASTM A1003: The Foundation of Steel Framing Solutions

Specifying cold-formed steel (CFS) requires moving beyond generic terminology and anchoring decisions in exact material standards. The governing standard for steel framing solutions in North America is ASTM A1003, which dictates the chemical composition, mechanical properties, and coating requirements for carbon steel sheet used in cold-formed framing. Understanding the yield strength grades within this standard is the first critical step in structural design and material procurement.

While Grade 33 is sufficient for interior demising walls, relying on it for exterior load-bearing assemblies will result in catastrophic under-engineering. Conversely, specifying Grade 97 for standard interior partitions wastes budget on unnecessary tensile strength. According to the Steel Framing Industry Association (SFIA), mismatching the grade to the load path is one of the most common specification errors in mid-rise CFS construction.

Gauge, Mils, and Web Depths: Sizing the Frame

The term "gauge" is frequently misused in construction documentation. In modern engineering, design thickness is measured in mils (thousandths of an inch). The American Iron and Steel Institute (AISI) mandates that structural calculations must be based on the minimum uncoated steel thickness in mils, not the nominal gauge number, which can vary by manufacturer.

Standard Thickness Mapping

• 25 Gauge (18 mils): Exclusively for non-load-bearing interior partitions and furring.
• 20 Gauge (33 mils): Standard for non-load-bearing exterior curtain walls and light interior partitions.
• 18 Gauge (43 mils): Transitional; used for heavy non-load-bearing or very light load-bearing residential walls.
• 16 Gauge (54 mils): The baseline for commercial load-bearing walls and structural floor joists.
• 14 Gauge (68 mils) to 12 Gauge (97 mils): Reserved for high-load axial columns, heavy floor trusses, and multi-story shear walls.

Web depths for structural studs typically range from 3-5/8 inches to 14 inches. A critical design rule: structural studs must have a minimum flange width of 1-5/8 inches to provide adequate bearing for sheathing and to prevent flange distortion under axial compression. Non-structural studs often feature 1-1/4 inch flanges, which are inadequate for structural load transfer.

Structural vs. Non-Structural Framing Solutions

The physical geometry of the stud and track changes depending on whether the assembly is designed to carry gravity loads or merely support its own weight and lateral finishes.

Load-Bearing Assemblies

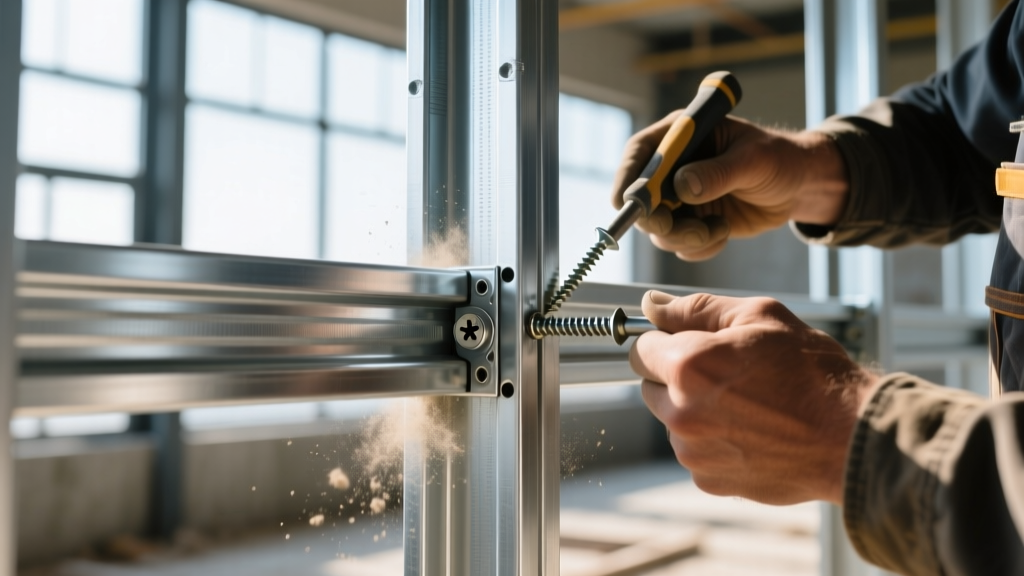

Structural studs feature punched knockouts (service holes) typically spaced 48 inches on center, but they also include solid web sections at the ends for bearing. They are manufactured with tighter dimensional tolerances and must be installed with the flanges facing the same direction to facilitate uniform sheathing attachment. Top and bottom tracks in load-bearing walls are typically nested or welded to ensure continuous vertical load transfer to the foundation or slab below.

Non-Load-Bearing and Deflection Tracks

Interior partitions and exterior curtain walls that hang from the building's primary structure must accommodate the live-load deflection of the concrete slab above. If a rigid track is used at the top of a non-load-bearing wall, slab deflection will crush the wall, causing drywall fasteners to pop and seams to crack.

Galvanization and Coating Weights: Preventing Corrosion

All steel framing solutions rely on hot-dip galvanization for corrosion resistance, but the coating weight must match the environmental exposure. ASTM A653 governs the coating designations.

When anchoring steel tracks directly to concrete slabs, moisture migration through the concrete will rapidly degrade G60 coatings. Building codes universally require G90 galvanized tracks or an approved moisture barrier (such as a borate-treated wood sill sealer or peel-and-stick membrane) between the concrete and the steel track.

Real-World Failure Modes and Engineering Edge Cases

Even when grades and gauges are correctly specified, poor detailing leads to structural failures. Watch for these specific edge cases during design and inspection:

1. Web Crippling: When heavy point loads (like roof truss heels) bear directly on the top flange of a stud without adequate web stiffening, the thin steel web will buckle and fold. Always specify web stiffeners or bearing blocks at concentrated load points.
2. Lateral-Torsional Buckling: Long, slender studs under heavy axial compression will bow outward. Bridging (flat strap or channel bracing) must be installed at intervals dictated by the stud's unbraced length calculations, typically not exceeding 48 inches for 16-gauge studs.
3. Thermal Bridging: Steel is highly conductive (approximately 430 times more conductive than wood). Without continuous exterior insulation (ci), the steel studs will act as thermal bridges, drastically reducing the wall's effective R-value and causing interior condensation. Specify a minimum of R-5 to R-10 rigid continuous insulation over the exterior sheathing to break the thermal bridge.
4. Acoustic Flanking: In multi-family residential projects, rigid connections between the steel stud and the primary structure transmit impact noise. Specify acoustic isolation clips and resilient channels to decouple the drywall from the steel framing.

Market Pricing and Material Sourcing

Material costs for steel framing solutions fluctuate based on raw steel indices, but current market baselines provide a reliable framework for budgeting. Prices below reflect material-only costs per linear foot (LF) for standard 8-foot to 10-foot lengths, excluding fasteners, labor, and waste factors.

Procurement strategy heavily impacts these numbers. Ordering mill-direct for projects exceeding 50,000 square feet of framing can reduce per-unit costs by 12% to 18%, though it requires a 6-to-8-week lead time. For smaller commercial tenant improvements, local service centers offer next-day delivery at a premium.

Specification Checklist for Architects and Framers

Before finalizing your framing package, verify the following parameters against your structural drawings:

• Confirm ASTM A1003 Grade (33, 50, or 97) is explicitly noted on structural plans, not just generic "cold-formed steel".
• Verify minimum uncoated thickness in mils is specified alongside nominal gauge.
• Ensure G90 coating is called out for all sill tracks bearing on concrete or masonry.
• Check that deflection tracks with appropriate slide clips are detailed at all non-load-bearing wall intersections with structural decks.
• Confirm continuous insulation (ci) thickness is sufficient to mitigate thermal bridging through the steel studs.
• Validate that web stiffeners are detailed at all truss bearing points and heavy header connections.

Precision in specifying steel framing solutions eliminates field rework, prevents structural deficiencies, and ensures the longevity of the building envelope. By anchoring your material selections in exact ASTM grades, precise mil thicknesses, and proper detailing for deflection and thermal transfer, you guarantee a high-performance structural assembly.
