Mastering Steel Track Framing: Gauges, Deflection Tracks, and Installation

The Structural Role of Steel Track Framing

Steel track framing serves as the continuous horizontal boundary for cold-formed steel (CFS) wall assemblies. Unlike wood plates that can warp, split, or absorb moisture, galvanized steel tracks provide a dimensionally stable foundation that transfers lateral wind loads and vertical gravity loads directly into the floor slab or roof diaphragm. In commercial and multi-family residential construction, the track is not merely a 'cap' for the studs; it is a highly engineered component that dictates the wall's overall shear capacity, acoustic performance, and ability to accommodate structural deflection.

Anatomy of a Track System: Standard vs. Deflection

A common error in CFS detailing is specifying standard U-channel tracks for every application. Modern building codes require distinct track profiles based on the structural behavior of the floors above. Understanding the difference between standard tracks and deflection tracks is critical for preventing drywall cracking and structural binding.

Gauge Selection and the 'Mil Thickness' Trap

Steel track framing is manufactured in various gauges, but relying solely on the gauge number is a liability. The industry has shifted toward specifying design thickness in mils (thousandths of an inch). For non-load-bearing interior partitions, 20-gauge (33 mil) track is the standard. For load-bearing exterior walls or structural shear walls, 16-gauge (54 mil) or 14-gauge (68 mil) track is required, typically utilizing 50 ksi yield strength steel.

Step-by-Step Installation and Fastening Protocols

Proper installation of the bottom track dictates the plumbness and structural integrity of the entire wall. Follow these field-tested protocols for securing track to concrete substrates:

1. Substrate Preparation and Layout: Sweep the concrete slab. Snap a chalk line using a laser transit to ensure the track aligns perfectly with the floor deck above. Apply a continuous bead of acoustical sealant or a 1/4-inch closed-cell foam gasket beneath the track to prevent moisture wicking and reduce flanking noise.

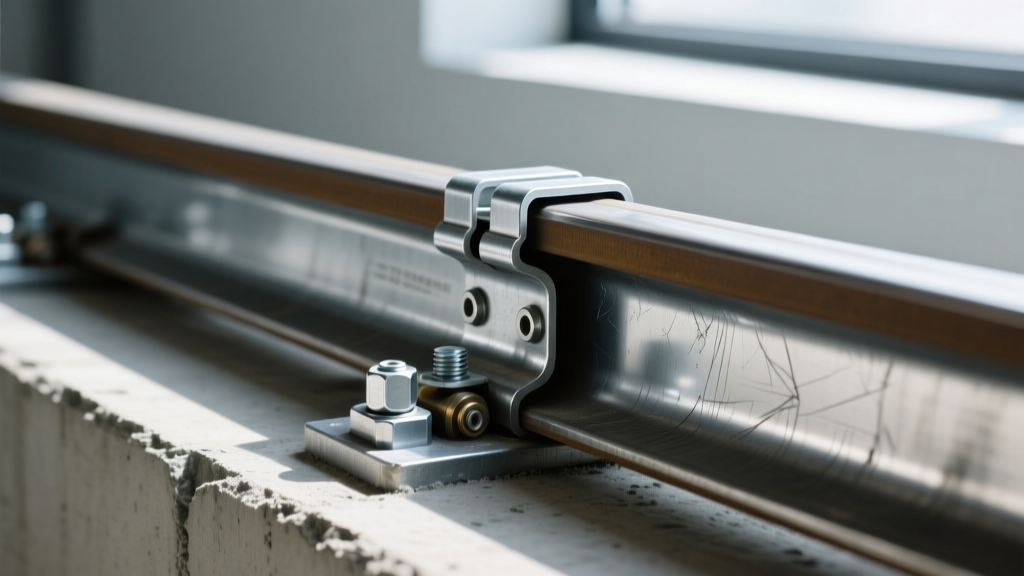

2. Powder-Actuated Fastening (PAT): For standard concrete slabs, use a powder-actuated tool with .300 caliber pins (such as Hilti X-HS or Simpson Strong-Tie equivalents). Space fasteners at a maximum of 24 inches on center (O.C.), starting 2 inches from the end of the track. Stagger pins left and right of the centerline to prevent the track from twisting.
3. Wedge Anchors for High-Shear Zones: In seismic or high-wind shear wall zones, PAT pins are often insufficient. Pre-drill 1/2-inch holes and install steel wedge anchors at the spacing dictated by the engineer of record (often 12 inches O.C. or less).
4. Stud-to-Track Connection: Secure the vertical studs to the bottom track flange using #8 or #10 self-drilling wafer-head screws. Ensure the screw penetrates the track flange by at least three full threads to achieve proper pull-out resistance.

Managing Vertical Deflection in Multi-Story Builds

In multi-story construction, floor assemblies deflect under live loads (occupants, furniture, snow). If a standard steel track is used at the top of a partition wall, this deflection will crush the wall, buckle the studs, and shatter the drywall.

Deflection tracks (often branded as slip tracks by manufacturers like ClarkDietrich and MarinoWARE) solve this by featuring an elongated, 2-inch or 3-inch web. The vertical studs are cut 1.5 inches short of the top slab. The studs are screwed only to the bottom flange of the deflection track, leaving the top flange and web free to slide down over the studs as the floor above sags. To prevent the studs from twisting laterally in this unbraced gap, bypass clips or slotted deflection clips must be installed at the top of each stud, allowing vertical movement while maintaining lateral stability.

2026 Material Cost Breakdown

Pricing for steel track framing fluctuates with raw steel coil markets. Below is the current commercial pricing matrix for standard galvanized (G60) tracks, reflecting early 2026 market averages for bulk contractor purchases.

Common Failure Modes and Troubleshooting

Even with high-quality materials, field errors can compromise steel track framing. Recognizing these failure modes allows for immediate correction:

• Web Crippling at Point Loads: When a heavy roof truss bears directly on the top track without aligning with a vertical stud, the track web can buckle. Six: Always align studs directly under point loads, or install structural bearing stiffeners (web cleats) inside the track to transfer the load.
• Flange Blowout from Over-Torquing: Using high-torque impact drivers on thin 20-gauge track can strip the screw hole or blow out the steel flange, resulting in zero pull-out strength. Fix: Use clutch-controlled screw guns set to the manufacturer's recommended torque, or step up to a thicker track flange (e.g., 1-1/2' flange instead of 1-1/4').
• Acoustic Flanking: Rigidly connecting the bottom track to a concrete slab without a resilient break allows impact noise to travel through the wall. Fix: Mandate the use of pre-applied acoustic foam tape or a continuous bead of non-hardening acoustical sealant under all interior partition tracks, as recommended by the Steel Framing Industry Association.

Mastering steel track framing requires moving beyond basic 'cap and plate' mentalities. By rigorously specifying mil thicknesses, correctly detailing deflection gaps, and adhering to strict fastening protocols, contractors can deliver wall assemblies that meet the demanding structural and acoustic codes of modern construction.
