Pro Hardwood Floor Installation: Subfloor Prep to Nailing Guide

Subfloor Tolerances and Structural Metrics

Successful hardwood floor installation begins long before the first plank is laid. The structural integrity and flatness of the subfloor dictate the long-term performance of the flooring. For 3/4-inch solid hardwood, the subfloor must be minimum 5/8-inch CDX plywood or 23/32-inch OSB (Oriented Strand Board) rated for structural flooring. Joist spacing must not exceed 19.2 inches on center for OSB or 16 inches on center for standard plywood to prevent deflection.

Flatness is the most frequently compromised metric in residential builds. According to the National Wood Flooring Association (NWFA), the subfloor must be flat to within 3/16-inch over a 10-foot radius, or 1/8-inch over a 6-foot radius. To achieve this:

• High Spots: Sand down swollen OSB seams or uneven plywood joints using a 36-grit floor edger or belt sander.
• Low Spots: Shim depressions using layers of 15-lb asphalt-saturated roofing felt or cedar shingles. Avoid using drywall joint compound or self-leveling cement under nail-down wood floors, as these materials will pulverize under the dynamic load of foot traffic and fastener vibration.

Moisture Acclimation: The EMC Standard

The outdated industry rule of thumb—'let the wood sit in the house for three days'—is a primary cause of post-installation gapping and cupping. Proper acclimation is based on achieving Equilibrium Moisture Content (EMC), not an arbitrary timeframe. The USDA Forest Products Laboratory emphasizes that wood moisture must align with the interior environment's year-round average.

Use a pin-type moisture meter (like the Delmhorst J-2000 or Wagner Orion 910) to test both the subfloor and the hardwood. Take readings from at least 40 boards per 1,000 square feet, and test the subfloor in a minimum of 20 locations.

Moisture Differential Tolerances

To accelerate acclimation, cross-stack the flooring bundles with 1/2-inch spacers between layers to allow air circulation. Ensure the HVAC system is fully operational and maintaining target temperature (60°F to 80°F) and humidity levels for at least five days prior to delivery.

Fastening Mechanics: Cleat vs. Staple vs. Glue-Assist

Selecting the correct fastener is dictated by the wood species' density and the board width. Pneumatic flooring nailers, such as the Powernail Model 50P or Bostitch EHF1835K, drive fasteners at a precise 45-degree angle through the tongue.

• L-Cleats and T-Cleats (16 to 18 gauge): Cleats provide superior holding power in dense, exotic species like Hickory, Brazilian Cherry, or Ipe. Because they have a smaller cross-section than staples, they are less likely to split the tongues of brittle hardwoods. Use 1-1/2-inch or 2-inch cleats for 3/4-inch flooring.
• Staples (15.5 gauge, 1/2-inch crown): Staples offer excellent initial grip and are highly cost-effective for standard domestic species like Red Oak, White Oak, and Maple. However, in highly fluctuating humidity environments, staples can lose tension over time, leading to squeaks.
• Glue-Assist Method: For solid boards wider than 5 inches, mechanical fasteners alone cannot prevent edge-cupping. Apply a continuous 1/4-inch bead of elastomeric wood flooring adhesive (e.g., Bostik Best or Bona 850) along the back of the board, parallel to the grain, in addition to blind-nailing the tongue. This dampens acoustic resonance and locks the board edges flat.

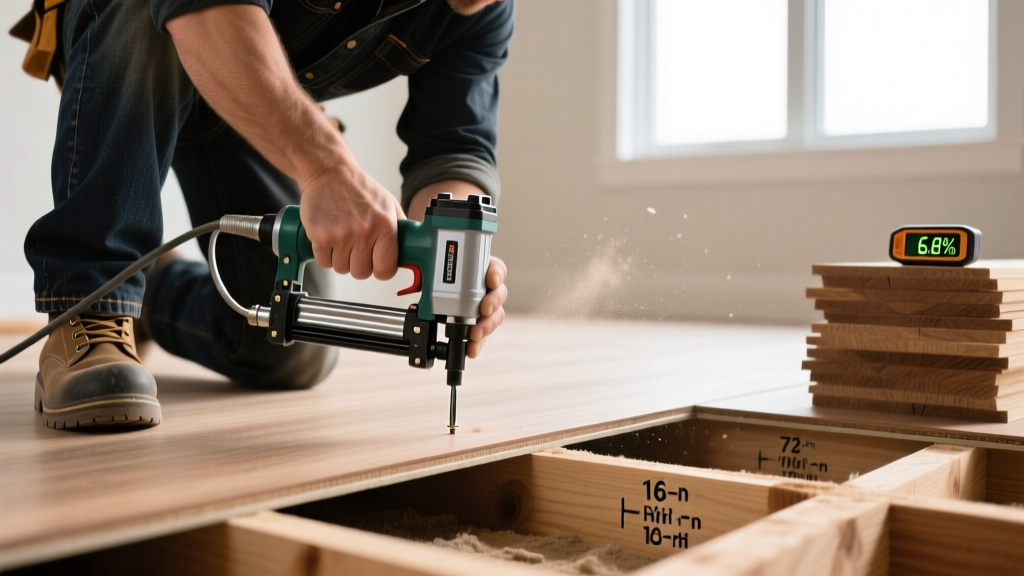

The Blind-Nailing Sequence and Spacing Matrix

Proper fastener placement prevents board migration and ensures a rigid, squeak-free assembly. The first three and last three rows of the room cannot accommodate a pneumatic nailer due to wall clearance; these must be face-nailed and top-nailed using a 15-gauge finish nailer or hand-nailed with 7d or 8d flooring nails, pre-drilled to prevent splitting.

Field Nailing Specifications

1. Angle and Depth: Position the nailer foot flush against the tongue. Strike the mallet (or trigger the pneumatic compressor set to 70-90 PSI) to drive the fastener at a 45-degree angle. The fastener head must seat flush or slightly below the top of the tongue so it does not obstruct the groove of the next board.
2. End Spacing: Place the first fastener 1 to 3 inches from the end of every board. This prevents the ends from lifting or 'flagging' over time.
3. Linear Spacing: For standard 3/4-inch x 2-1/4-inch strip flooring, nail every 8 to 10 inches. For 3/4-inch x 3-1/4-inch to 5-inch plank flooring, nail every 6 to 8 inches. Every board must receive a minimum of two fasteners, regardless of its length.
4. Staggering End Joints: Maintain a minimum 6-inch stagger between end joints in adjacent rows. For boards wider than 5 inches, increase the stagger to a minimum of 10 inches to distribute structural tension and prevent 'H-pattern' clustering.

Managing Edge Cases: Radiant Heat and Transitions

Installing solid hardwood over radiant heating systems is generally discouraged by manufacturers due to the extreme localized drying that causes severe gapping. If solid wood must be used, specify quarter-sawn White Oak, which exhibits roughly 50% less tangential shrinkage than plain-sawn lumber. The radiant system's surface temperature must never exceed 80°F, and an in-floor temperature sensor must be wired to the thermostat to enforce this hard limit.

'When transitioning from a nail-down hardwood floor to a lower-profile surface like tile or carpet, do not rely on surface-mounted T-moldings alone. Cut a 1/2-inch deep relief kerf into the subfloor at the transition line and install a hardwood spline glued with urethane adhesive to create a rigid, interlocking anchor for the transition molding.'

Finally, always maintain a 3/4-inch expansion gap around the entire perimeter of the room, including door jambs, pipes, and islands. This gap must remain completely clear of debris, drywall mud, and fasteners, and will be concealed by 1/2-inch or 3/4-inch shoe molding or baseboard. Failure to provide this continuous expansion space will result in compressive buckling during high-humidity summer months, requiring a complete teardown and reinstall.
