Structural Guide to Popular Types of Wood Fence Designs

The Structural Physics of Wood Fencing

When evaluating types of wood fence designs, aesthetic appeal often overshadows structural engineering. However, a wood fence is essentially a series of cantilevered retaining walls subjected to severe lateral wind loads, dynamic gate stresses, and continuous ground-contact decay. According to the American Wood Council (AWC), a standard 6-foot-tall solid privacy fence in a 90 mph wind zone experiences approximately 15 to 20 pounds per square foot (psf) of lateral pressure. This translates to over 100 pounds of lateral shear force per linear foot of fencing.

To prevent catastrophic failure, structural design must dictate the selection of post dimensions, embedment depths, lumber species, and hardware. This guide breaks down the engineering requirements for the most common wood fence configurations.

Evaluating Types of Wood Fence Designs by Wind Resistance

The geometry of the picket placement directly alters the wind load profile. Below is an analysis of how different designs perform under structural stress.

1. Solid Privacy (Stockade & Tall Board)

Stockade fences feature tightly butted vertical pickets attached to horizontal rails. While they offer 100% visual blockage, they suffer from maximum wind load transfer. Structural Requirements: Minimum 4x4 posts for 6-foot heights in protected urban areas (Exposure B), upgrading to 6x6 posts for open terrains. Maximum post span should not exceed 8 feet on center (O.C.). Horizontal rails (2x4s) must be toe-nailed or bracketed with structural screws, not standard smooth-shank nails, which pull out under cyclic wind loading.

2. Semi-Private (Board-on-Board & Shadowbox)

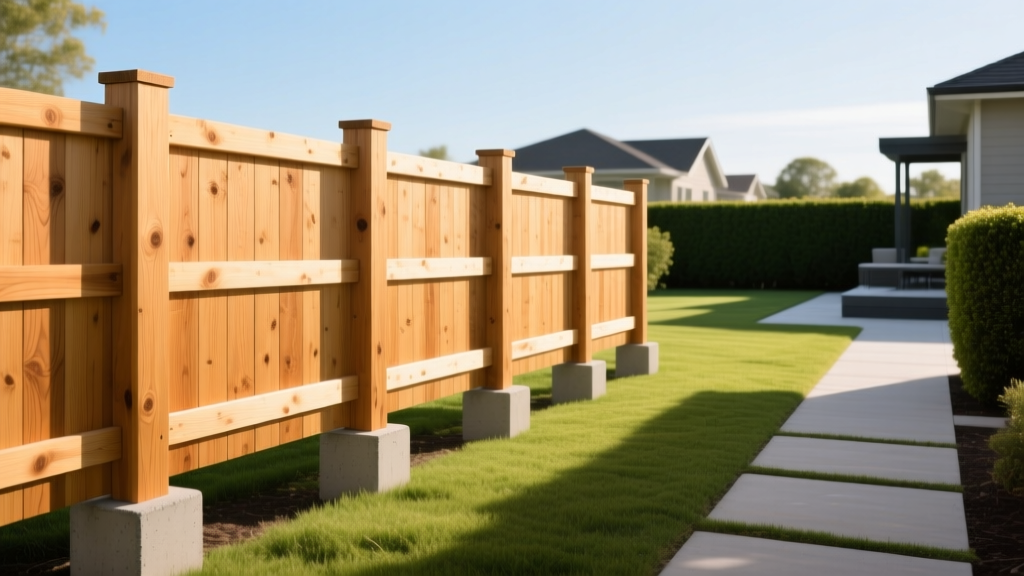

Board-on-board designs overlap vertical pickets on the same side of the rail, while shadowbox designs alternate pickets on opposite sides of the rail. Structural Requirements: The alternating shadowbox design reduces lateral wind pressure by up to 30% due to cross-ventilation. This allows for 4x4 posts at 8-foot O.C. spans even in moderate wind zones. However, shadowbox designs require thicker rails (2x4 minimum) because the pickets are only fastened to one face of the rail, creating a torsional twisting force on the lumber.

3. Open Structure (Split Rail & Ranch)

Utilizing horizontal rails spaced widely apart or mortised through vertical posts, open designs present negligible wind resistance. Structural Requirements: The primary structural concern here is dead load and racking. Mortise-and-tenon joinery is structurally superior to face-nailing for split rail fences, as it prevents the rails from sagging over time under their own weight. Posts can be spaced 10 to 12 feet O.C.

Structural Comparison Matrix

Lumber Selection and AWPA Ground Contact Standards

The structural longevity of any fence is dictated by its posts. The USDA Forest Products Laboratory (FPL) notes that 90% of premature fence failures occur at the ground-line interface due to fungal decay and moisture intrusion. When selecting lumber, you must reference the American Wood Protection Association (AWPA) Use Category standards.

• UC4A (Ground Contact - General Use): Suitable for fence posts in well-draining, sandy soils where water does not pool. Minimum retention level for Southern Yellow Pine (SYP) is 0.40 pcf (pounds per cubic foot) of copper azole or ACQ.
• UC4B (Ground Contact - Heavy Duty): Mandatory for fence posts in poorly draining clay soils, high-water-table areas, or where the post is embedded in a concrete collar that traps moisture. Requires a 0.60 pcf retention level.
• Heartwood vs. Sapwood (Cedar & Redwood): If using untreated Western Red Cedar or Redwood, structural posts must be graded 'All Heartwood'. Sapwood lacks the natural extractives (thujaplicins) that resist decay and will rot within 3 to 5 years in ground contact.

Post Embedment and Foundation Engineering

The structural rule of thumb for cantilevered fence posts is the 1/3 to 2/3 rule: one-third of the total post length must be embedded underground to support two-thirds above ground. For a standard 6-foot-tall fence, you need a 9-foot post buried 36 inches deep.

Concrete Collar vs. Crushed Gravel Backfill

Pouring a continuous concrete footing around a wood post is a common but structurally flawed practice in freeze-thaw climates. Concrete acts as a bucket, trapping water against the wood and accelerating rot at the collar interface. Furthermore, the smooth surface of concrete is highly susceptible to frost heave.

The Engineering Fix: Set the post on 6 inches of compacted 3/4-inch crushed gravel for drainage. Backfill the remaining hole with crushed gravel or a dry-tamped concrete mix, sloping the top 4 inches away from the post to shed surface water. This allows hydrostatic pressure to dissipate and prevents frost-jacking.

Hardware and Fastener Specifications

Modern pressure-treated lumber utilizes copper-based preservatives (like ACQ or CA-C) that are highly corrosive to standard metals. Using electroplated or standard zinc-coated fasteners will result in severe galvanic corrosion, leading to structural joint failure within 24 months.

• Hot-Dipped Galvanized (HDG): Must meet ASTM A153 Class D (Z275 coating thickness) for use with standard ground-contact treated lumber.
• Stainless Steel (Type 304 or 316): Mandatory if building within 3,000 feet of a saltwater coastline, or if using highly corrosive fire-retardant-treated (FRT) wood. Type 316 offers superior molybdenum-enhanced pitting resistance.
• Structural Screws vs. Nails: For rail-to-post connections, utilize 1/4-inch x 3-inch structural lag screws or specialized fencing brackets (e.g., Simpson Strong-Tie FB series) rather than relying on the withdrawal resistance of 16d common nails.

FAQ: Structural Fence Troubleshooting

Why is my 4x4 post twisting and splitting?

Kiln-dried lumber absorbs ground moisture and swells, while sun exposure dries the outer layers, causing radial checking and twisting. To mitigate this, use rough-sawn, green (wet) pressure-treated SYP for posts, which dries in place, or apply a penetrating end-grain sealer to the top of the post to prevent vertical moisture intrusion.

Can I attach fence panels directly to a masonry retaining wall?

Yes, but do not embed wood directly into the masonry. Use hot-dipped galvanized post bases (e.g., Simpson ABA44Z) anchored into the concrete cap with wedge anchors. Ensure the base elevates the wood post at least 1 inch above the masonry surface to prevent capillary water wicking.

How do I handle a fence line on a steep slope?

For slopes exceeding a 10% grade, 'racking' the fence (following the contour) creates severe parallelogram shear stress on the joints. Instead, use a 'stepped' design, keeping rails perfectly level and stepping the pickets down the slope. This maintains the rectangular structural integrity of the framing and prevents joint racking.
