Installation Guide to the Main Types of Concrete Slab Foundations

Selecting and installing the correct foundation is the most critical structural decision in any building project. The various types of concrete slab foundations—ranging from standard slab-on-grade to complex post-tensioned systems—require distinctly different installation protocols, soil preparations, and curing methodologies. A failure in the subgrade or reinforcement phase will manifest as differential settlement or structural cracking within the first five years. This guide provides field-tested installation procedures, material specifications, and engineering tolerances for the primary slab foundation systems used in modern construction.

Decision Matrix: Matching Slab Types to Site Conditions

Before breaking ground, match the foundation type to the geotechnical report. The table below outlines the installation parameters and 2026 cost baselines for the four primary slab systems.

Phase 1: Subgrade Engineering and Site Preparation

Regardless of the slab type, the subgrade must provide uniform support. A common failure mode is differential settlement caused by uncompacted fill soil or organic topsoil left beneath the slab.

• Excavation: Remove all topsoil and organic material to a minimum depth of 12 inches below the finished subgrade elevation.
• Compaction: The subgrade must be compacted to a minimum of 95% Standard Proctor density (per ASTM D698). Use a vibratory plate compactor for granular soils and a sheepsfoot roller for cohesive clays.
• Capillary Break: Install a 4-inch to 6-inch layer of crushed gravel (3/4-inch minus) over the compacted subgrade. This layer acts as a capillary break to prevent ground moisture from wicking into the concrete and provides a stable working surface.
• Moisture Conditioning: The subgrade should be uniformly moist (not saturated) before pouring. A dry subgrade will rapidly absorb water from the concrete mix, causing premature plastic shrinkage and weakening the bottom crust of the slab.

Phase 2: Standard Slab-on-Grade Installation Sequence

The standard slab-on-grade is the most ubiquitous of the types of concrete slab foundations. Precision in formwork and vapor barrier installation is non-negotiable.

1. Formwork and Vapor Retarders

Set 2x4 or 2x6 dimensional lumber or engineered steel forms, staked every 3 feet. Verify elevation with a laser level. Over the gravel base, install a continuous 15-mil or 20-mil cross-laminated polyethylene vapor barrier (compliant with ASTM E1745). Tape all seams with 4-inch vapor barrier tape. Do not puncture the barrier with rebar chairs; use sand mounds or specialized concrete-tipped stands to elevate the steel.

2. Reinforcement Placement

For residential and light commercial slabs, use a 6x6 W1.4xW1.4 welded wire mesh (WWM) or #4 (1/2-inch) rebar spaced at 16 inches on-center in a grid pattern. The reinforcement must be positioned in the upper third of the slab thickness to resist tensile forces from shrinkage and surface loading. Pull the mesh up during the pour using a rake, or use continuous bolsters to maintain the correct depth.

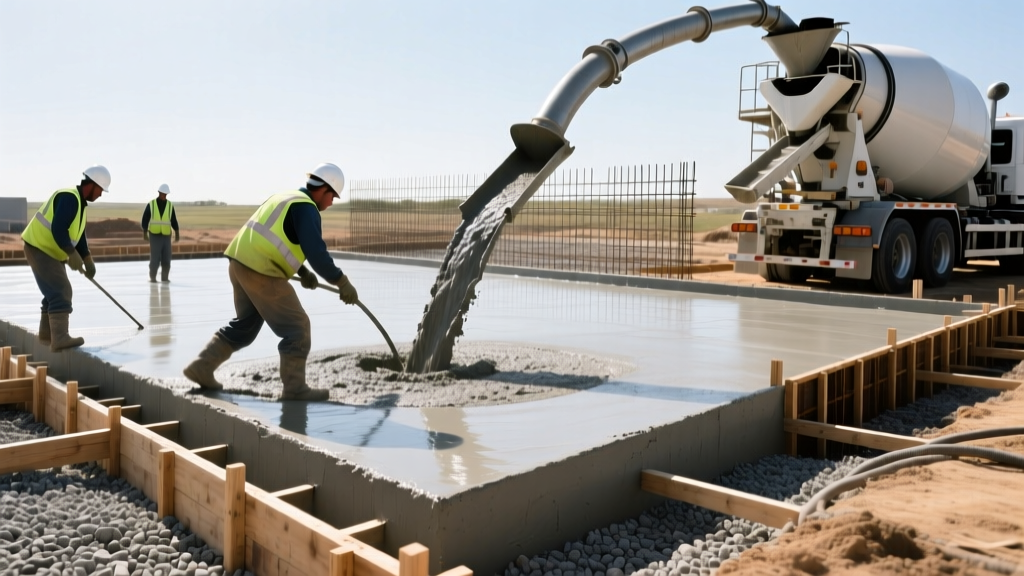

3. The Pour and Strike-Off

Order concrete with a minimum compressive strength of 3,000 PSI to 4,000 PSI at 28 days, with a maximum water-cement ratio (w/c) of 0.45 to 0.50. Avoid adding water on-site to increase slump; use a mid-range water reducer (plasticizer) instead. Strike off the concrete using a vibratory screed to ensure consolidation and a level surface.

Phase 3: Specialized Installation: Post-Tensioned Slabs

When dealing with highly expansive soils, post-tensioned (PT) slabs are the superior choice among the types of concrete slab foundations. According to the Post-Tensioning Institute (PTI), PT slabs use high-strength steel tendons to compress the concrete, actively counteracting the tensile stresses caused by soil movement.

Tendon Layout and Pouring

PT tendons (typically 270 ksi, 0.5-inch diameter strands encased in a plastic sheath) are laid out in a banded pattern under load-bearing walls and a uniform grid in the slab field. Tendons must be securely tied to chairs to prevent floating during the concrete pour. The concrete must reach a minimum compressive strength of 2,500 PSI (verified via field-cured cylinder tests) before stressing can begin.

The Stressing Sequence

Using a calibrated hydraulic jack, stress the tendons to the engineered specifications (typically 33,000 lbs of force per tendon). This is usually done in two lifts: an initial stress at 2,500 PSI to seat the wedges, and the final stress once the concrete reaches 3,000 to 4,000 PSI. After stressing, the tendon tails are cut off, and the anchor pockets are filled with non-shrink grout to prevent corrosion.

Phase 4: Frost-Protected Shallow Foundations (FPSF)

For cold climates where excavating below the frost line is cost-prohibitive, the FPSF utilizes rigid insulation to trap geothermal heat beneath the building. The U.S. Department of Housing and Urban Development (HUD) provides extensive guidelines on the thermal dynamics of these systems.

• Vertical Insulation: Install Type IV or V Extruded Polystyrene (XPS) or high-density Expanded Polystyrene (EPS) vertically against the exterior of the grade beam. Minimum R-value is typically R-10, extending from the top of the slab down to the footing base.
• Horizontal Wing Insulation: Depending on the local Air Freezing Index (AFI), a horizontal "wing" of insulation (R-5 to R-15) extends outward from the grade beam into the subgrade for 2 to 4 feet. This wing must be sloped slightly away from the foundation to promote drainage.
• Protection: Backfill carefully by hand around the insulation to prevent crushing or displacing the foam boards. UV exposure will degrade XPS/EPS, so it must be covered or parged within 30 days of installation.

Phase 5: Curing Protocols and Temperature Controls

Curing is not merely "letting it dry"; it is the active management of moisture and temperature to ensure continuous cement hydration. The American Concrete Institute (ACI) mandates strict curing durations based on ambient conditions.

For interior slabs that will receive moisture-sensitive floor coverings (like epoxy, VCT, or hardwood), use a wet-curing method (continuous ponding or saturated burlap) for 7 days. Avoid membrane-forming curing compounds on these slabs, as they can interfere with flooring adhesives and emit volatile organic compounds (VOCs) that trap moisture beneath the floor covering.

Troubleshooting Common Installation Failures

Even with rigorous adherence to the types of concrete slab foundations outlined above, edge cases and environmental factors can cause defects. Use this troubleshooting matrix to diagnose and prevent field issues.

1. Random Map Cracking (Craze Cracking)

• Cause: Surface drying faster than the interior concrete, often due to over-troweling or applying water to the surface during finishing.
• Fix/Prevention: Never broadcast water or dry cement on the surface. Begin power troweling only when the concrete can support a worker's weight with a 1/4-inch indentation. Apply a liquid curing compound immediately after the final trowel pass.

2. Differential Settlement at Utility Trenches

• Cause: Plumbing trenches beneath the slab were backfilled with native, uncompacted soil, leading to localized sinking.
• Fix/Prevention: All utility trenches must be backfilled in 6-inch lifts using flowable fill (CLSM) or compacted crushed stone to 95% Proctor density before the vapor barrier is laid.

3. Curling at Control Joints

• Cause: High moisture gradient between the top and bottom of the slab. The top dries and shrinks while the bottom remains damp.
• Fix/Prevention: Ensure the subgrade vapor barrier is intact. Cut control joints to a depth of exactly 25% of the slab thickness (e.g., 1 inch deep for a 4-inch slab) within 4 to 12 hours of pouring to force controlled cracking before internal stresses build up.
