Types of Crawl Space Foundations: A Structural Comparison

The Anatomy of a Crawl Space: Beyond the Vents

Selecting the correct foundation system dictates the structural longevity, moisture management, and thermal performance of a building. When evaluating the types of crawl space foundations, builders must move beyond generic code minimums and engineer the substructure for specific soil mechanics, hydrostatic pressure, and seismic loads. A crawl space is fundamentally a short basement; treating it as an unconditioned void leads to catastrophic moisture intrusion, mold proliferation, and structural degradation. This guide dissects the four primary structural configurations used in modern construction, providing exact material specifications, load-bearing metrics, and 2026 pricing data to inform your structural design.

Matrix: Comparing the 4 Primary Types of Crawl Space Foundations

Deep Dive: Stem Wall (Perimeter Foundation) Systems

Stem walls transfer the structural load from the sill plate down to a continuous spread footing. They are the most common choice for flat to moderately sloped lots. Builders typically choose between Concrete Masonry Units (CMU) and poured-in-place concrete.

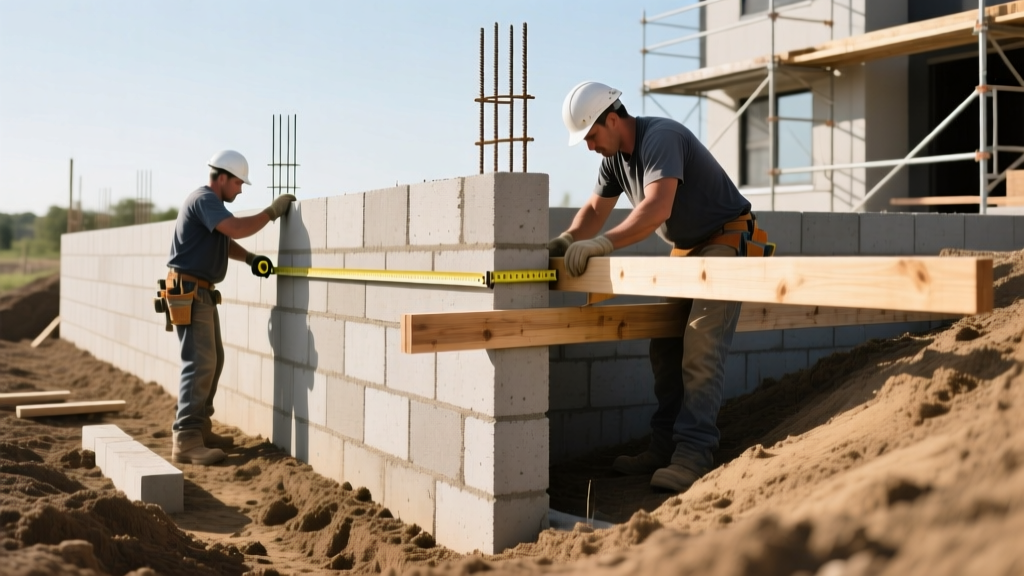

CMU Block Construction Specs

For load-bearing stem walls, specify 8-inch nominal thickness CMU blocks compliant with ASTM C90 (Standard Specification for Loadbearing Concrete Masonry Units). Standard practice requires vertical #4 (1/2-inch) rebar placed at 48 inches on-center (O.C.) and two horizontal #4 bars in the bond beam. All cells containing rebar must be fully grouted. The exterior below-grade surface requires a parge coat of Type S mortar and a dimpled drainage mat (e.g., Tremco Tremdrain) to manage hydrostatic pressure.

Poured Concrete Stem Walls

Poured walls utilize aluminum or insulated concrete forms (ICFs) and require a minimum 3,000 PSI mix design with a low water-cement ratio (0.45 or less) to ensure impermeability. Poured walls offer superior shear strength, making them mandatory in high seismic zones or areas with severe expansive clay soils where differential settlement can crack CMU mortar joints.

Pier and Beam: The Traditional Approach Modernized

Pier and beam foundations elevate the floor joists above the ground, creating an accessible void. While historically built with undersized wooden posts set in shallow concrete pads, modern engineered pier and beam systems utilize pre-cast concrete footings and heavy-duty treated lumber.

Sizing and Load Calculations

For interior piers, utilize pre-cast spread footings such as the BigFoot Systems F-24, which provides a 4-square-foot bearing area capable of supporting up to 12,000 lbs in standard 2,000 PSF bearing soils. The vertical posts must be minimum 6x6 Southern Yellow Pine, pressure-treated to UC4B (Ground Contact, Heavy Duty) retention levels (0.60 pcf) to resist subterranean termite attack and fungal decay. Floor girders are typically triple 2x10s or a single 4x12 beam, spaced according to the IRC span tables based on the joist span above.

Helical Piers and Steel Piles: Engineered for Expansive Soils

When soil borings reveal deep, highly active expansive clays (Plasticity Index > 25) or undocumented fill material, shallow spread footings will fail. Helical piers bypass the active soil zone, transferring structural loads to stable, load-bearing strata deep underground.

Installation Torque and Depth Metrics

Systems like Chance Helical Piles utilize a 2-7/8-inch OD round steel shaft with helical bearing plates welded at specific pitch intervals. Installation relies on the empirical torque-to-capacity correlation. For a standard residential load requirement of 20,000 lbs per pier, the installer must achieve a minimum installation torque of 3,500 ft-lbs. If the required torque is not achieved at the design depth, additional helical extensions must be added until the bearing strata is reached, frequently pushing pier depths past 30 feet in regions like Texas and Colorado.

Precast Concrete Panels: The Fast-Track Alternative

Precast crawl space walls, such as those manufactured by Superior Walls, are cast in a controlled factory environment using 5,000 PSI concrete and steel reinforcement. Delivered in 10-to-12-foot sections, they are craned onto a crushed stone footing bed and bolted together at the vertical joints. While the upfront material cost is 20-30% higher than CMU, the elimination of on-site forming, pouring, and curing reduces the critical path schedule by up to two weeks, offering massive savings in construction loan interest and labor overhead.

Decision Framework: Matching Foundation Type to Soil Profile

Do not select a foundation type based solely on contractor preference. Base the decision on the geotechnical report:

• Stable, Sandy Loam (Low PI): CMU Stem Wall. Most cost-effective, easy to waterproof, excellent drainage characteristics.
• Moderately Expansive Clay (PI 15-25): Poured Concrete Stem Wall with stiffened grade beams. The monolithic nature of poured concrete resists the bending moments caused by minor soil swelling.
• Highly Expansive Clay or Uncompacted Fill (PI > 25): Helical Piers with a suspended floor system or void-form cartons beneath a structural slab. You must isolate the structure from soil movement entirely.
• High Water Table / Flood Zone: Elevated Pier and Beam. Allows floodwaters to pass beneath the structure without inducing hydrostatic pressure on solid walls, complying with FEMA NFIP requirements.

2026 Cost Breakdown: Material vs. Labor

The following costs reflect national averages for a standard 2,000 sq. ft. rectangular footprint (approx. 180 linear feet of perimeter) in 2026, excluding site clearing and bulk excavation.

Critical Encapsulation and Code Requirements

The structural shell is only half the battle. Modern building science dictates that crawl spaces must be sealed and conditioned to prevent moisture-driven failures. According to the Building Science Corporation's Builders' Guides, vented crawl spaces in humid climates actively pull moist air into the cool subfloor environment, causing condensation on HVAC ducts and floor joists.

To build a code-compliant, unvented crawl space under IRC Section R408.3, you must install a continuous ground vapor retarder. Do not use cheap 6-mil polyethylene sheeting; it degrades rapidly under foot traffic. Specify a minimum 10-mil, preferably 20-mil cross-laminated polyethylene liner compliant with ASTM E1745 Class A. The liner must be run up the stem walls and sealed to the concrete with acoustical sealant or specialized masonry tape. Furthermore, insulation must be applied to the interior face of the stem walls (typically R-19 to R-21 rigid XPS or closed-cell spray foam), not batt insulation stuffed between the floor joists above. For comprehensive moisture and mold prevention strategies, refer to the EPA Mold Course Chapter 3, which details the critical intersection of ground moisture, ventilation, and structural decay.

By matching the specific structural system to your geotechnical data and enforcing strict encapsulation protocols, you ensure the crawl space remains a dry, stable, and accessible asset rather than a hidden liability.
