Types of Hospital in Nursing Foundation Structural Bases

The Structural Reality of Healthcare Substructures

Healthcare facilities impose extreme substructural demands that far exceed those of commercial or residential construction. When structural engineers evaluate the types of hospital in nursing foundation layouts, they are analyzing how high-density patient wings, heavy diagnostic equipment, and strict vibration tolerances dictate the concrete and piling specifications below grade. Nursing wings require continuous operational stability; a differential settlement of even 0.5 inches can crack medical gas lines, disrupt sterile airflow gradients, and misalign sensitive telemetry networks.

According to the Facility Guidelines Institute (FGI), hospital foundations must accommodate dynamic loads from foot traffic, mobile medical equipment, and structural vibrations. Furthermore, under ASCE 7-22 standards, hospitals are classified as Risk Category IV structures, meaning their foundations must remain fully operational following a maximum considered earthquake (MCE). This guide compares the three primary structural foundation systems used in modern nursing wing construction, detailing material specifications, load capacities, and 2026 cost metrics.

Mat Slab (Raft) Foundations for High-Density Nursing Wards

For low-to-mid-rise nursing wings built on stable, high-bearing-capacity soils (typically >4,000 psf), the mat slab or raft foundation is the industry standard. This system consists of a single, heavily reinforced concrete slab that spans the entire footprint of the building, distributing the massive dead and live loads evenly across the subgrade.

Material and Engineering Specifications

• Thickness: Typically ranges from 36 to 72 inches for multi-story nursing wings.
• Concrete Mix: Minimum 5,000 psi compressive strength at 28 days. To prevent thermal cracking in mass pours, engineers specify a 30% to 50% Ground Granulated Blast-Furnace Slag (GGBFS) replacement for Type II/V Portland cement, adhering to ASTM C989.
• Reinforcement: Dual-mat grid using #11 or #14 Grade 80 epoxy-coated rebar, spaced at 6 to 8 inches on center, tied with heavy-duty chair supports to maintain cover depth.

Pros and Cons of Mat Slabs

Pros: Eliminates differential settlement; provides a built-in sub-grade vapor barrier when paired with a 15-mil polyethylene liner; faster construction timeline compared to deep piling.

Cons: Requires massive concrete pours (often 2,000+ cubic yards) necessitating complex thermal monitoring; unsuitable for expansive clays or high-water-table sites without extensive dewatering.

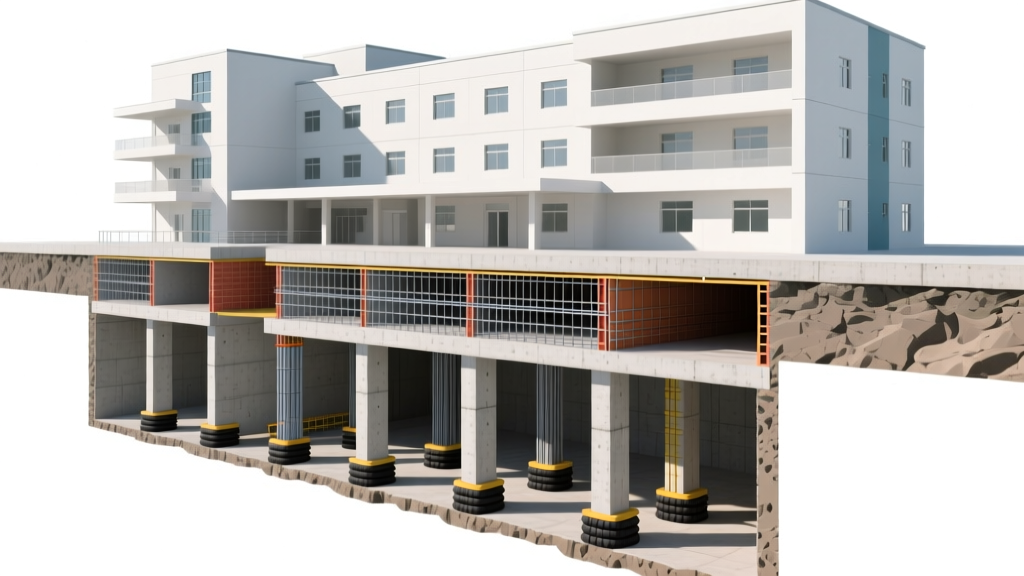

Deep Pile and Drilled Shaft Systems for Expansive Soil Zones

When nursing wings are constructed in regions with expansive clays, liquefiable sands, or weak compressible soils (bearing capacity <2,000 psf), surface foundations will fail. In these scenarios, structural loads must be bypassed through the weak strata and transferred to bedrock or dense glacial till using deep pile or drilled shaft systems.

System Configurations

1. Augercast Piles (CFA): Continuous flight auger piles, typically 18 to 30 inches in diameter, driven to depths of 50 to 90 feet. High-strength grout (5,000+ psi) is pumped through the hollow stem as the auger is withdrawn, creating a friction-bearing shaft.
2. Drilled Shafts (Caissons): For mega-loads directly beneath heavy nursing station cores or elevator shafts, 42 to 60-inch diameter drilled shafts are excavated, cased, and reinforced with heavy steel cages before being filled with self-consolidating concrete (SCC).

The pile cap tying these elements together is usually a 36-inch thick grade beam network, elevated slightly above the subgrade to prevent expansive soil uplift from transferring lateral pressure to the nursing wing's ground-floor slab.

Seismic Base Isolation: The Gold Standard for Critical Care Zones

For nursing wings housing intensive care units (ICUs) or neonatal intensive care units (NICUs) in high-seismic zones (e.g., California, Pacific Northwest, parts of the New Madrid Seismic Zone), traditional fixed-base foundations are insufficient. Base isolation decouples the superstructure from the foundation, allowing the earth to move beneath the building while the nursing wing remains virtually stationary.

Isolation Bearing Technologies

• Lead Rubber Bearings (LRBs): Consist of alternating layers of high-damping rubber and steel shims, with a solid lead core. The rubber provides flexibility, while the lead core yields during a seismic event, dissipating kinetic energy as heat.
• Triple Friction Pendulum (TFP) Bearings: Utilize multiple concave sliding surfaces with varying friction coefficients. TFPs are highly effective for nursing wings because they provide progressive stiffness, handling both frequent, low-intensity tremors and rare, maximum-considered earthquakes without structural damage.

According to data from the National Earthquake Hazards Reduction Program (NEHRP), base-isolated hospitals experience up to 80% less floor acceleration during a seismic event compared to fixed-base structures, ensuring that life-support systems and medical gas infrastructure remain fully intact and operational.

Comparative Matrix: Foundation Systems for Nursing Wings

2026 Cost Metrics and Material Requirements

Foundation costs for healthcare facilities are heavily influenced by the risk category requirements, specialized concrete admixtures, and heavy reinforcement ratios. Below are the estimated 2026 baseline costs for hospital-grade foundation systems (excluding site excavation and dewatering).

• Mat Slab Foundation: $22.00 to $34.00 per square foot. The high cost is driven by mass concrete thermal management, cooling pipes, and high-density rebar cages.
• Deep Pile Systems (CFA): $45.00 to $65.00 per square foot of building footprint. Costs scale linearly with depth and the number of piles required to support the structural grid.
• Seismic Base Isolation Adder: Adding an isolation layer (LRBs or TFPs) and the required sub-basement vault adds $18.00 to $28.00 per square foot to the overall foundation budget. However, this often reduces the cost of the steel superstructure above, as the building requires less ductile detailing.

Decision Framework: Selecting the Right Foundation System

Choosing the correct substructure for a nursing wing requires a systematic evaluation of geotechnical, operational, and financial variables. Use the following framework during the schematic design phase:

1. Execute Deep Geotechnical Borings: Do not rely on shallow soil tests. Nursing wings require borings extending at least 1.5 times the width of the proposed foundation to identify deep compressible layers or bedrock anomalies.
2. Map the Medical Gas and Utility Corridors: If the foundation design requires post-tensioned slabs or deep grade beams, ensure the tendon profiles and beam depths do not conflict with the under-slab medical vacuum, oxygen, and pneumatic tube routing.
3. Evaluate Vibration Criteria (VC): If the nursing wing shares a structural grid with an operating suite or radiology department, a mat slab or pile-supported structural slab is mandatory to achieve VC-C or VC-D curves. Standard shallow spread footings will fail vibration tolerances.
4. Conduct a Life-Cycle Seismic Analysis: For facilities in Seismic Design Categories D, E, or F, consult the American Society of Civil Engineers (ASCE) seismic guidelines. The upfront premium for base isolation is frequently offset by the elimination of post-earthquake business interruption costs and the preservation of critical life-safety infrastructure.

Ultimately, the physical foundation of a healthcare campus is not merely a structural necessity; it is the baseline safeguard for patient care. By aligning the geotechnical realities of the site with the operational demands of the nursing wing, structural engineers can deliver a substructure that guarantees decades of uninterrupted medical service.
