Fire Testing Building Materials: ASTM Standards & Ratings Guide

The Bifurcated Testing Framework: Endurance vs. Reactivity

Fire testing building materials is not a monolithic process; it is a highly regulated, bifurcated discipline divided into fire-resistance (endurance) and fire-reactivity (surface burning). Building officials and fire marshals do not accept generic "fireproof" marketing claims. Instead, they require third-party certification based on rigorous, standardized furnace and tunnel tests. Understanding the distinction between these two testing pillars is the first step in specifying compliant assemblies for commercial and multi-family construction.

Decoding the ASTM E119 Time-Temperature Curve

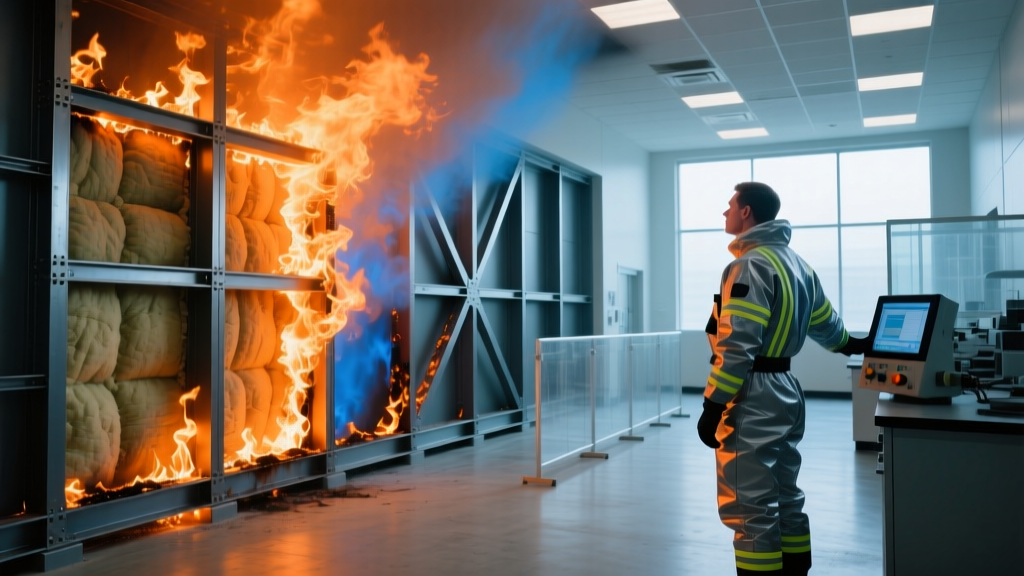

When fire testing building materials for structural endurance, laboratories utilize the ASTM E119 Standard Test Methods for Fire Tests of Building Construction and Materials. The test subjects a minimum 100-square-foot wall or floor assembly to a controlled furnace that follows a strict, standardized time-temperature curve. The assembly must not only survive the heat but also prevent the unexposed side from exceeding an average temperature rise of 250°F above ambient.

The Standard Time-Temperature Data Points

The furnace temperature is aggressively ramped up to simulate a severe, fully developed compartment fire. Laboratories monitor thermocouples embedded in the unexposed side of the test specimen to ensure heat transmission limits are not breached.

• 5 Minutes: 1,000°F (538°C)
• 10 Minutes: 1,300°F (704°C)
• 30 Minutes: 1,550°F (843°C)
• 1 Hour: 1,700°F (927°C)
• 2 Hours: 1,850°F (1,010°C)
• 4 Hours: 2,000°F (1,093°C)

If an assembly is targeting a 2-hour rating, it must endure the 1,850°F peak and subsequently pass the hose-stream test without collapsing or allowing cotton waste on the unexposed side to ignite.

The Hose-Stream Test: Thermal Shock and Mechanical Impact

Many innovative composite panels survive the furnace phase of UL fire testing but fail catastrophically during the mandatory hose-stream test. Immediately after the furnace exposure, the superheated assembly is blasted with a high-pressure fire hose to simulate the thermal shock and mechanical impact of firefighting operations.

Surface Burning Characteristics: The Steiner Tunnel (ASTM E84)

While ASTM E119 tests the "bones" of a building, ASTM E84 tests the "skin." The Steiner Tunnel test evaluates how quickly flames travel across the surface of a material and how much smoke it generates. The test specimen (25 feet long, 20 inches wide) is mounted as the ceiling of a specialized tunnel and exposed to two gas burners outputting 125,000 BTU/hr.

Optical sensors and thermocouples track the flame front and smoke density, generating two critical indices:

1. Flame Spread Index (FSI): Measures the lateral speed of flame propagation. Asbestos-cement board is the baseline (FSI 0), and red oak flooring is the upper baseline (FSI 100).
2. Smoke Developed Index (SDI): Measures the optical obscuration caused by smoke. Both asbestos-cement and red oak are baselined at SDI 0 and 100, respectively.

Through-Penetration Firestop Systems (ASTM E814)

A fire-rated wall is only as strong as its weakest penetration. When MEP (Mechanical, Electrical, Plumbing) trades pierce a rated assembly, the fire testing paradigm shifts to ASTM E814 / UL 1479. This standard evaluates firestop systems (intumescent caulks, putty pads, collars, and wraps) used to seal gaps around pipes, cables, and ducts.

Firestop certifications are defined by two distinct ratings:

• F-Rating (Flame Rating): The time the firestop system prevents flame and hot gases from passing through the penetration. An F-Rating must equal or exceed the hourly rating of the wall/floor being penetrated.
• T-Rating (Temperature Rating): The time it takes for the unexposed side of the penetrating item (e.g., a steel pipe) to reach 325°F above ambient. This prevents secondary ignition of combustible materials touching the pipe on the safe side of the wall.

Economics and Timelines for Custom Assembly Testing

For manufacturers developing novel building materials—such as mass timber cross-laminated panels or aerogel-infused concrete—navigating the economics of custom fire testing is a major project bottleneck. Laboratories like FM Global, Intertek, and UL Solutions operate on strict scheduling matrices.

Technical FAQ: Fire Certification Edge Cases

Can standard latex paint be applied over a fire-rated gypsum board?

Yes, but with strict limitations. Applying standard acrylic or latex paint to a Type X gypsum board does not void its ASTM E119 assembly rating, provided the paint is applied at a standard coverage rate (typically less than 2 coats). However, if the assembly relies on the surface burning characteristics of the bare board to maintain a Class A FSI, heavy layers of combustible paint could push the FSI into Class B or C territory. Never apply standard paint over intumescent coatings; it will encapsulate the chemical reaction and void the fire-resistive certification.

What is the difference between "fire-resistive" and "fire-retardant"?

These terms are frequently conflated but represent entirely different testing outcomes. Fire-resistive refers to an assembly's ability to contain a fire and maintain structural integrity for a specific duration (e.g., a 2-hour rated concrete masonry wall tested via ASTM E119). Fire-retardant refers to a chemical treatment applied to a combustible material (like pressure-treated lumber or plywood) to reduce its surface flame spread (tested via ASTM E84 or ASTM D2898 for weathering). A fire-retardant wood stud can be used to build a fire-resistive wall assembly, but the treatment alone does not grant the wall an hourly rating.

How do field modifications impact UL certifications?

Any deviation from the exact UL Design Number (e.g., substituting 5/8-inch standard gypsum for 5/8-inch Type X, or changing stud spacing from 16 inches to 24 inches on center) immediately voids the certification. If a contractor must deviate due to supply chain constraints, they must request an Engineering Judgment (EJ) from the manufacturer or a certified fire protection engineer prior to closing up the wall. Building inspectors routinely reject assemblies where the as-built conditions do not match the printed UL directory specifications.
