Installing Different Types of Engineered Wood: Best Practices

The Hidden Risks of Improper Engineered Wood Installation

Engineered wood products (EWP) offer superior dimensional stability and load-bearing capacity compared to solid sawn lumber. However, the manufacturing processes that give these materials their strength also dictate strict installation protocols. Misunderstanding the structural mechanics of the various types of engineered wood leads to catastrophic field failures, including flange blowouts in I-joists, irreversible edge swelling in OSB, and connection failures in mass timber.

Material-Specific Installation Matrices: LVL, PSL, and LSL

Laminated Veneer Lumber (LVL), Parallel Strand Lumber (PSL), and Laminated Strand Lumber (LSL) are the workhorses of residential and light commercial framing. While they look similar on site, their internal grain orientation dictates how they must be handled and fastened.

Mass Timber (CLT and Glulam) Erection Protocols

Mass timber requires a shift from traditional stick-framing mindsets to precision steel-erection methodologies. The tolerances for Cross-Laminated Timber (CLT) and Glued Laminated Timber (Glulam) are measured in millimeters, not inches.

Glulam Camber Placement

Glulam beams are manufactured with a built-in upward bow known as camber. This is designed to offset the anticipated dead and live load deflection over the beam's lifespan.

• The Rule: Always install glulam with the camber pointing UP. The beam should look like a slight arch.
• Identification: Look for the manufacturer's stamp. Glulam beams are stamped with an 'X' or the word 'TOP' on the tension side (which must face down for simply supported spans, meaning the camber faces up).
• Failure Mode: Installing a glulam beam upside down (camber down) effectively doubles the visible deflection once loads are applied, leading to sagging roofs and cracked drywall.

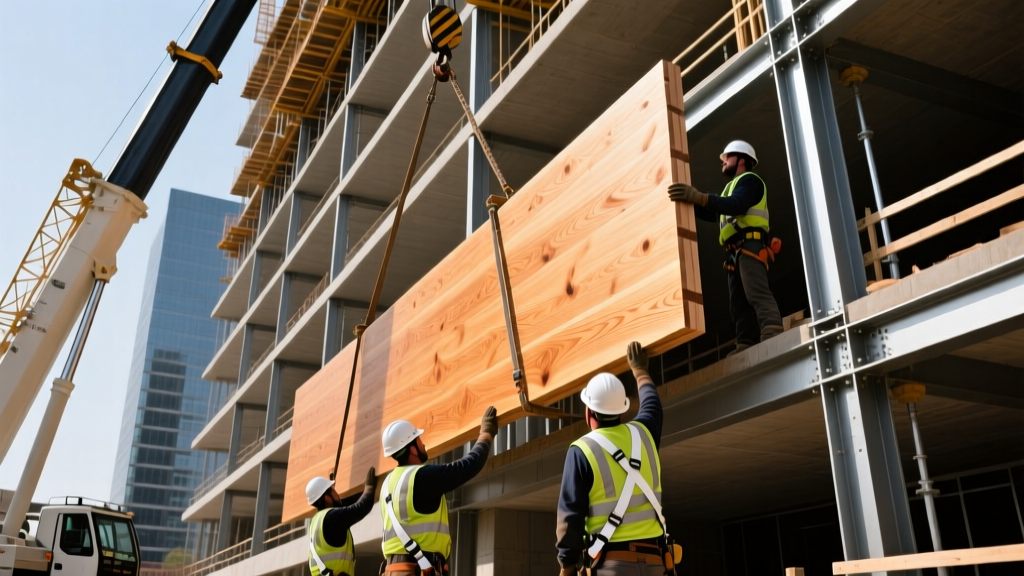

CLT Panel Sealing and Splining

When erecting CLT floor or wall panels, the joints between panels are the most vulnerable points for air infiltration and moisture ingress.

1. Edge Sealing: Apply a specialized breathable membrane tape (such as Siga Fentrim or Pro Clima Tescon Vana) to all panel edges before they are hoisted. Once panels are set, accessing the bottom edge is impossible.
2. Splines: Use manufacturer-specified wooden or steel splines in the routed grooves of the panel edges to transfer shear loads between adjacent CLT panels. Never force a spline with a sledgehammer; if it does not slide in by hand, the panel alignment is off.

I-Joist and Structural Panel Framing Rules

I-joists combine LVL or solid sawn flanges with an OSB or plywood web. They are incredibly strong but highly susceptible to improper field modifications.

Web Hole Cutting Strictures

Plumbers and HVAC technicians frequently need to route pipes and ducts through I-joist webs. The APA - The Engineered Wood Association provides strict geometric limits for these penetrations:

• Flange Protection: Never cut, notch, or drill into the top or bottom flanges. The flanges carry 100% of the bending tension and compression forces.
• Centerline Rule: Holes must be centered on the web's vertical axis. The distance from the edge of the hole to the top or bottom flange must be at least twice the diameter of the hole.
• Bearing Proximity: Do not cut holes within 6 inches of the end bearing points (where the joist rests on a wall or beam), as shear forces are highest at these locations.

Moisture Management and Acclimatization Timelines

Engineered wood is manufactured at a specific Equilibrium Moisture Content (EMC), typically between 8% and 12% for interior applications. When exposed to job-site weather, the materials absorb moisture, leading to edge swelling (particularly in OSB webs and panels) and mold growth.

According to the USDA Forest Products Laboratory, wood-decaying fungi require a moisture content above 19% to thrive. Therefore, keeping EWP below this threshold during construction is non-negotiable.

Field Drying Protocols

If LVL beams or OSB sheathing are rained on during the framing stage, they must be allowed to dry before being enclosed.

• Do Not Trap Moisture: Never install polyethylene vapor barriers or closed-cell spray foam over damp engineered wood. This traps the moisture inside the assembly, guaranteeing rot.
• Edge Swelling: If OSB subfloor edges swell due to rain (a condition known as 'edge swell'), they must be sanded flush before installing finish flooring. Installing hardwood or rigid LVP over swollen OSB seams will result in telegraphing and warranty denial from the flooring manufacturer.

Fastener Selection and Corrosion Compatibility

The adhesives used in some engineered woods, as well as the fire-retardant or preservative treatments applied to them, can be highly corrosive to standard fasteners. The American Wood Council (AWC) mandates specific fastener coatings based on the chemical environment.

Expert Troubleshooting: Common Field Failures

Symptom: LVL beam is exhibiting deep vertical checks (cracks) along the length.
Cause: Rapid drying on the job site. If an LVL is stored in direct sunlight or near temporary construction heaters, the outer veneers dry and shrink faster than the core.
Fix: Minor checking is normal and does not affect structural capacity. However, if checks exceed 1/4 inch in width or run entirely through the beam depth, consult the manufacturer's structural engineer. Store EWPs in shaded, ventilated areas and avoid pointing temporary heaters directly at structural beams.

Symptom: Squeaky I-joist floors after installation.
Cause: Failure to apply construction adhesive to the top flange of the I-joist before laying the subfloor, or using the wrong adhesive that dries brittle.
Fix: Always apply a continuous 1/4-inch bead of premium polyurethane or high-quality acrylic subfloor adhesive (e.g., OSI Subfloor or PL Premium) to the top flange. Additionally, use ring-shank nails or structural screws rather than smooth-shank nails to secure the subfloor to the LVL flanges.
