Comparing Types of Cuts in Wood: Plain vs Quarter vs Rift Sawn

The Geometry of Milling: Why Cutting Angles Matter

When specifying lumber for architectural millwork, structural framing, or high-end flooring, understanding the types of cuts in wood is critical for predicting dimensional stability, cost, and visual aesthetics. Wood is an anisotropic material, meaning its physical properties change depending on the direction of the grain. Specifically, wood shrinks and swells at different rates along three axes: longitudinal (along the trunk), radial (from the pith to the bark), and tangential (parallel to the growth rings).

According to the USDA Forest Products Laboratory Wood Handbook, tangential shrinkage is typically twice as great as radial shrinkage. For example, flat-sawn red oak exhibits an 8.6% tangential shrinkage rate but only a 4.7% radial shrinkage rate. This differential is the primary driver of cupping, twisting, and checking in milled lumber. Sawmills manipulate the angle at which the log is sliced relative to its growth rings to mitigate these forces, resulting in three primary categories of lumber: plain sawn, quarter sawn, and rift sawn.

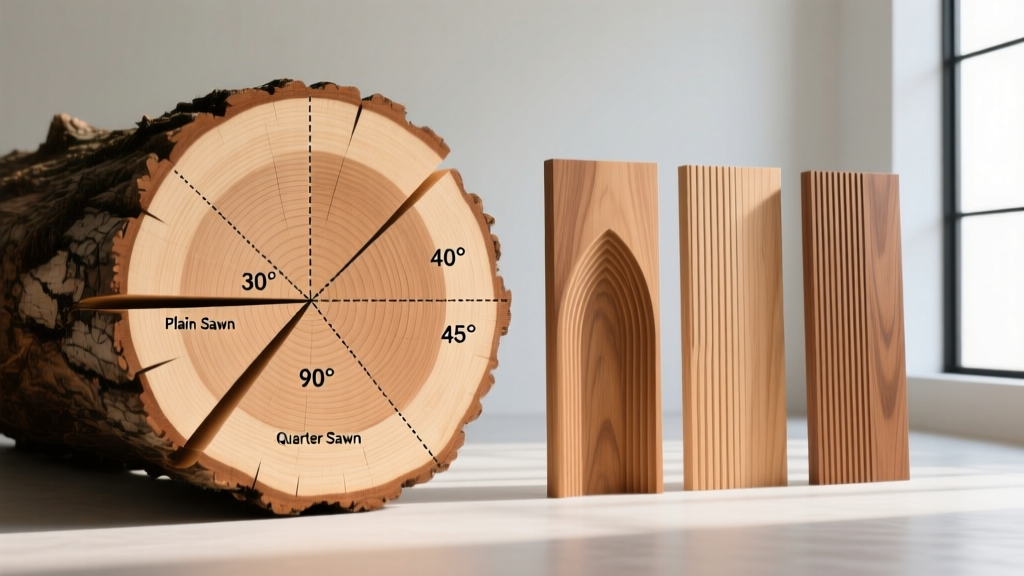

Plain Sawn (Flat Sawn): The High-Yield Industry Standard

Plain sawing, often referred to as flat sawing, is the most common and economical method of milling lumber. The log is sliced tangentially, parallel to the growth rings, producing boards where the growth rings intersect the face of the board at an angle of 0 to 35 degrees.

Because plain sawing requires the fewest cuts and produces the widest boards from a single log, it maximizes the mill's yield and minimizes waste. This makes it the default choice for structural framing (like standard 2x4s and 2x6s) and budget-conscious finish carpentry. However, the wide exposure of the tangential plane makes plain sawn boards highly susceptible to cupping across their width when exposed to fluctuating humidity. In wide-plank flooring applications, plain sawn boards wider than 5 inches require meticulous acclimation and precise moisture barrier installation to prevent edge-curling.

Quarter Sawn: Dimensional Stability and Ray Fleck

To produce quarter sawn lumber, the log is first quartered longitudinally. Each quarter is then sliced perpendicular to the growth rings, yielding boards where the rings intersect the face at a 60 to 90-degree angle. This method exposes the radial plane of the wood, which is inherently more stable and resistant to the tangential shrinkage that causes cupping.

Quarter sawn lumber shrinks and swells primarily in thickness rather than width, making it the premier choice for wide-plank hardwood flooring, exterior trim, and structural timber where dimensional stability is non-negotiable. The trade-off is a significant reduction in yield (typically 40% to 50%) and an increase in milling time. Consequently, quarter sawn lumber generally commands a 30% to 50% price premium over plain sawn equivalents of the same species and grade.

Rift Sawn: The Premium Straight-Grain Solution

Rift sawing is the most labor-intensive and wasteful milling method. Boards are cut at a 30 to 60-degree angle to the growth rings (optimally around 45 degrees). The goal is to produce a perfectly straight, linear grain pattern on all four faces of the board, entirely avoiding the cathedral grain of plain sawn boards and the ray fleck of quarter sawn boards.

As noted by experts at The Wood Database, true rift sawing generates massive amounts of offcut waste, pushing log yield below 30%. Because of this extreme inefficiency, rift sawn lumber is rarely stocked as a standard commodity. It is typically custom-milled and carries a 50% to 80% price premium. Its primary application is in high-end furniture legs, stair balusters, and architectural millwork where a consistent, straight-grained appearance is required on multiple visible planes without the visual interruption of ray fleck.

Comparison Matrix: Yield, Cost, and Stability Metrics

The following matrix provides a direct comparison of the primary types of cuts in wood to assist in material specification and budget forecasting.

Live Sawn: The Modern Hybrid Alternative

While plain, quarter, and rift represent the traditional geometry of milling, live sawn (or European style sawing) has gained traction in wide-plank flooring markets. The sawyer cuts straight through the log from the outside in, without turning the cant. This produces a single batch of wood that naturally contains plain sawn grain at the edges of the log and quarter/rift sawn grain near the center. Live sawn flooring offers a highly varied, rustic aesthetic with a better overall yield than quarter sawing, though installers must be aware that the boards from the center of the log will behave differently under humidity changes than those from the outer edges.

Decision Framework: Specifying the Right Cut for Your Project

Selecting the appropriate cut requires balancing budget constraints against environmental exposure and aesthetic requirements. Use the following framework when drafting material specifications:

1. Specify Plain Sawn when: You are framing interior, climate-controlled walls; manufacturing painted cabinetry where the grain pattern will be obscured; or working within strict budget constraints where standard dimensional lumber (e.g., #2 Southern Yellow Pine) is sufficient.
2. Specify Quarter Sawn when: You are installing solid hardwood flooring over radiant heat systems or in environments with high seasonal humidity swings. The National Wood Flooring Association (NWFA) specifically recommends quarter sawn lumber for wide-plank installations (over 4 inches) to minimize seasonal gapping and edge-cupping. It is also mandatory for exterior millwork, such as window sashes and fascia, where moisture exposure is guaranteed.
3. Specify Rift Sawn when: Designing high-end, modern furniture pieces (like table legs or chair spindles) where a continuous, straight-grained appearance is required on all four visible sides, and the budget allows for premium custom milling.

Understanding the precise geometry and physical behavior of these types of cuts in wood transforms lumber from a generic commodity into a highly engineered building material. By matching the milling method to the specific mechanical and environmental demands of your project, you prevent costly callbacks, ensure long-term structural integrity, and achieve the exact visual finish intended in the design phase.
