Choosing the Right Type of Wooden Joints for Timber Framing

The structural integrity of a timber frame relies entirely on the mechanical interlock of its joinery. Unlike light-frame construction that depends on nailed metal connectors and plywood shear panels, heavy timber framing transfers immense compressive, tensile, and shear loads directly through wood-to-wood contact. Selecting the correct type of wooden joints for specific structural nodes is not merely an aesthetic choice; it is a fundamental engineering decision that dictates the lifespan and safety of the building.

The Mechanics of Load Transfer in Timber Joinery

Before cutting a single mortise, framers must map the load paths through the structure. Wood is highly anisotropic, meaning its strength varies drastically depending on the direction of the grain relative to the applied force. According to the USDA Forest Products Laboratory Wood Handbook, wood is strongest in compression parallel to the grain, but significantly weaker in compression perpendicular to the grain.

Shear vs. Tensile Stress in Joint Selection

When evaluating which type of wooden joints to deploy, identify the primary stress at the connection point. A post-to-beam connection primarily handles vertical compression and lateral shear. A rafter-to-plate connection must resist both downward compression and outward tensile thrust. Relying solely on wooden pegs (treenails) to resist tensile withdrawal is a critical error; pegs are designed to hold joints in alignment while the timber shoulders bear the actual structural loads.

Core Structural Joints: Installation Best Practices

Mortise and Tenon (Through and Blind)

The mortise and tenon is the undisputed workhorse of timber framing. For structural applications, the tenon should be cut to exactly one-third the thickness of the timber to maintain equal shear strength in both the tenon and the mortise cheeks.

The Drawbore Technique: To pull a mortise and tenon joint tight without relying on clamps or modern adhesives, framers use drawboring. This involves offsetting the peg hole in the tenon slightly closer to the shoulder than the holes in the mortise cheeks.

1. Drill the Mortise: Bore the holes through the empty mortise cheeks first.
2. Mark the Tenon: Insert the tenon into the mortise and pass the drill bit through to mark the tenon.
3. Offset the Tenon Hole: Remove the tenon and shift your drilling mark 1/8 inch to 3/16 inch toward the tenon shoulder. Drill the tenon hole at this new mark.

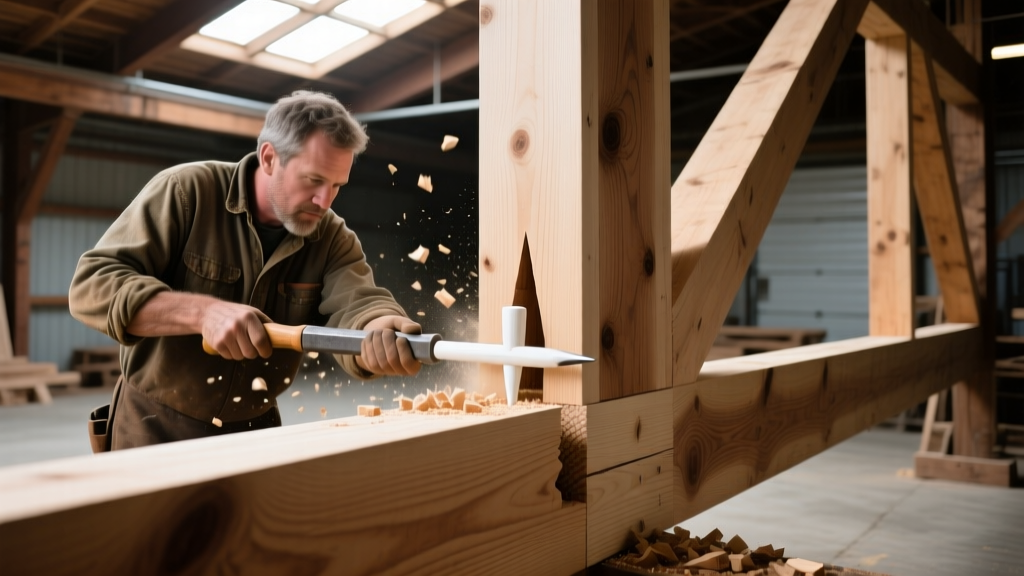

4. Drive the Peg: As the tapered hardwood peg is driven through the offset holes, it mechanically forces the tenon shoulder tight against the mortise cheek.

Scarf Joints for Lengthening

When timber lengths exceed available stock, scarf joints splice two members together. The installation best practice for a structural scarf joint in a bending member (like a purlin or plate) requires a minimum slope ratio of 1:4 or 1:5. A 1:4 ratio on an 8x8 timber requires a 32-inch splice length.

To prevent the joint from sliding under longitudinal tension, installers must incorporate a "nib" (a small square block of wood left protruding at the end of the scarf face) or use a folded wooden wedge driven into a kerf cut across the splice line. Modern framers sometimes supplement these with concealed steel shear plates or threaded epoxy rods, but the primary load must still transfer through the wood bearing surfaces.

Decision Matrix: Matching Joint Type to Load Condition

Selecting the appropriate joint requires matching the geometry to the specific structural demands. The following matrix outlines standard applications based on the American Wood Council National Design Specification (NDS) principles for timber connections.

Moisture Content and Dimensional Tolerances

The most common cause of joint failure in timber framing is ignoring wood movement. Wood shrinks and swells primarily in the tangential and radial directions; longitudinal shrinkage (along the grain) is negligible. If you are installing joints in "green" timber (moisture content above 30%), the wood will shrink significantly as it dries to its Equilibrium Moisture Content (EMC), typically 8-12% for interior spaces.

The Shrinkage Gap Rule: When cutting a mortise and tenon joint in green timber, the tenon length must be slightly shorter than the depth of the mortise. Leave a 1/4-inch to 1/2-inch gap at the top of the tenon inside the mortise. As the horizontal beam shrinks radially, its overall depth decreases. If the tenon is cut perfectly flush to the bottom of the mortise in green wood, the subsequent radial shrinkage will force the tenon to act as a wedge, splitting the vertical post's mortise cheek from the inside out.

Modern Fastening and the Adhesive Trap

A frequent mistake among novice framers transitioning from fine woodworking is the application of structural adhesives (like polyurethane or resorcinol formaldehyde) to heavy timber joints. While the Timber Framers Guild acknowledges the use of epoxy in specific repair scenarios, traditional joinery relies on mechanical interlock.

Heavy timbers experience significant seasonal movement and internal checking (cracking) as they dry. Rigid adhesive bonds will inevitably fracture under these cyclic stresses, creating a false sense of security during installation. Furthermore, gluing a joint prevents future disassembly for repairs or building relocation. Rely strictly on precise bearing surfaces, proper drawboring, and hardwood pegs for primary structural connections.

Troubleshooting Common Installation Failures

Mastering the installation of these joints requires a synthesis of traditional geometry and modern material science. By respecting the anisotropic nature of wood, accommodating moisture-driven dimensional changes, and executing precise mechanical interlocks, framers ensure that the structural skeleton will outlast the centuries.
