Steel Portal Framing: Structural Design, Spans, and Cost Guide

The Mechanics of Steel Portal Framing in Modern Construction

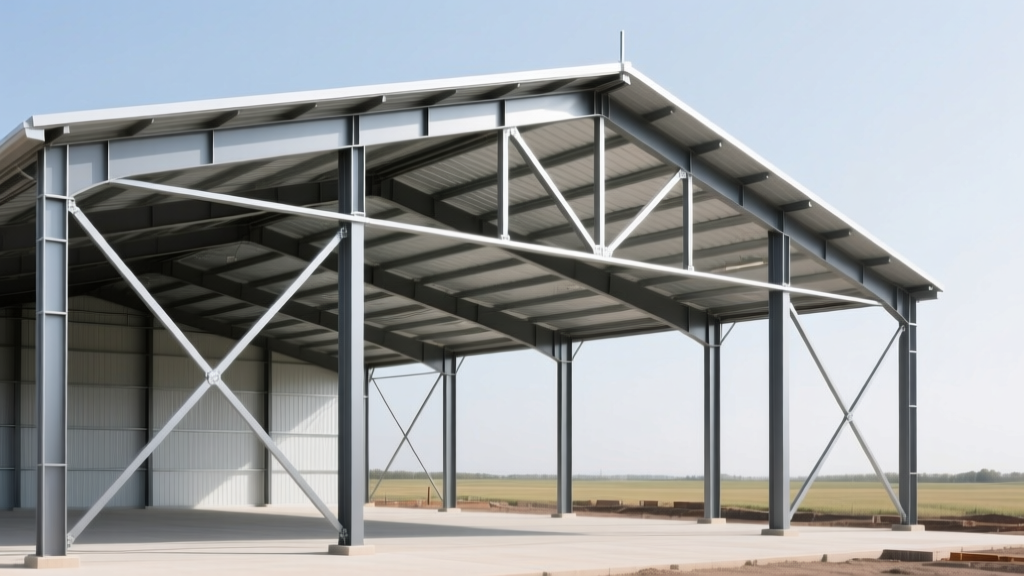

Steel portal framing represents one of the most efficient structural systems for low-rise, wide-span industrial and commercial buildings. Unlike simple beam-and-column post-and-beam systems that rely on pinned connections, a true portal frame utilizes rigid, moment-resisting connections at the eaves (the knee joint) and often at the apex. This continuity allows the frame to act as a single, unified structural entity, transferring bending moments from the rafter directly into the columns and significantly reducing the required section depths compared to simply supported beams.

In modern structural applications, portal frames are predominantly fabricated from high-strength, low-alloy steel, typically conforming to ASTM A992 for hot-rolled W-shapes or ASTM A572 Grade 50 for built-up tapered sections. The tapering of the rafters and columns—deeper at the eaves where bending moments peak, and shallower at the apex and base—optimizes the steel tonnage, making the system highly economical for spans ranging from 50 to 160 feet.

Optimal Span Limits and Proportions

The geometric proportions of a portal frame dictate its structural efficiency. The most economical span-to-eaves-height ratio typically falls between 3:1 and 5:1. When designing for specific clear-span requirements, structural engineers must balance the rafter depth, bay spacing, and purlin sizing. The following data matrix outlines standard proportional baselines for single-span portal frames under moderate snow and wind loads (ASCE 7-22 Risk Category II).

Load Path Vulnerabilities and Failure Modes

While portal frames are highly efficient, their reliance on moment continuity introduces specific structural vulnerabilities that must be addressed during the design phase. According to guidelines published by the Steel Construction Institute (SCI), engineers must rigorously evaluate the following failure modes:

• P-Delta Effects (Second-Order Analysis): Because portal frames are relatively flexible laterally, vertical loads acting on a displaced frame generate additional overturning moments. Designs must incorporate second-order analysis to account for these amplifications, particularly in frames with high eaves and slender columns.
• Lateral Torsional Buckling (LTB): The rafter experiences a reversal of bending moments (hogging near the eaves, sagging near the apex). The bottom flange is in compression near the haunch and is highly susceptible to LTB. This is mitigated by installing haunch braces and strategically placing purlins to act as lateral restraints.
• Haunch Yielding and Local Buckling: The haunch (the tapered section added to the column to deepen the eaves joint) concentrates immense shear and moment forces. If the web is too slender, it will buckle locally before reaching its plastic moment capacity. Transverse stiffener plates are almost always required at the haunch-to-column intersection.

2026 Cost Breakdown: Fabrication vs. Erection

Understanding the cost anatomy of steel portal framing is critical for accurate project budgeting. In the current market, the price of structural steel is heavily influenced by fabrication complexity and regional labor rates. Below is a detailed cost breakdown for a standard 20,000 sq. ft. unheated warehouse utilizing a 100-foot clear span portal frame.

Steel Portal Framing vs. Truss Systems: A Decision Matrix

When designing wide-span structures, project teams frequently debate between rigid portal frames and pitched truss systems. The American Institute of Steel Construction (AISC) provides extensive guidelines on both, but the choice ultimately hinges on architectural requirements, span limits, and interior utility routing.

Erection Sequencing and Temporary Bracing

The structural integrity of a portal frame is fully realized only when the cladding and permanent bracing are installed. During erection, the frame is highly vulnerable to wind loads and lateral instability. Adhering to a strict sequencing protocol is non-negotiable.

1. Base Plate Setting: Anchor bolts are surveyed and set. Columns are lifted and plumbed, but base plate nuts are left slightly loose to allow for minor adjustments during frame alignment.
2. Ground Assembly: To minimize crane time, the left column, left rafter, apex haunch, and right rafter are often bolted together on the ground to form a half-frame or full-frame assembly, depending on crane capacity.
3. The Lift and Apex Connection: The assembly is hoisted. Temporary guy wires are immediately attached to the columns to prevent sway. The two halves of the frame are joined at the apex using high-strength ASTM F3125 Grade A490 or A325 bolts.
4. Installation of Sway Bracing: Before releasing the crane, diagonal rod bracing or strut tubes must be installed in the roof plane and wall bays. Skipping this step is the leading cause of catastrophic collapses during steel erection.
5. Final Torquing and Grouting: Once a stabilized bay is fully plumbed and squared, all structural bolts are torqued to specification, base plate nuts are tightened, and non-shrink grout is poured beneath the base plates.

Specification and Code Compliance

Designing and fabricating steel portal frames requires strict adherence to current building codes. In the United States, the primary governing documents are the AISC 360-22 (Specification for Structural Steel Buildings) and ASCE 7-22 (Minimum Design Loads and Associated Criteria for Buildings and Other Structures). For projects utilizing cold-formed steel secondary members (purlins and girts) in conjunction with hot-rolled portal frames, engineers must also integrate the AISI S100 standards.

Furthermore, many pre-engineered metal building (PEMB) manufacturers design portal frames using the Metal Building Manufacturers Association (MBMA) Low Rise Building Systems Manual, which provides specialized load combinations and design criteria tailored specifically to the unique behavior of metal building systems. Ensuring your structural engineer is well-versed in both AISC and MBMA methodologies is critical for optimizing the design and avoiding over-engineering, which can inflate project costs by 10% to 15%.
